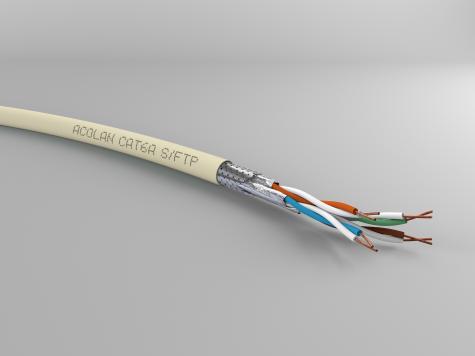

R7297A-T500 | ACOLAN® COPPER FIREPROTECT

Reference : R7297A-T500
S/FTP Cat.6a 550 MHz LSOH-FR 4P DRUM 500m - IVORY

Applications

  • 10 Gigabit high speed data transmission cables are designed for horizontal cable distribution local computer networks.
  • These cables allow the use of the protocol supported by the EA class for the 10 GBASE-T applications.
  • They are characterized of up to 550 MHz.
  • They are compatibles with PoE & PoE+, UPoE & 4PPoE (PoE++) applications.

General characteristics

Schema coupe 103-106

  1. Conductor



Solid annealed red copper wire, AWG 23

Foam skin Pe insulation Æ ≤ 1.45 mm



  1. Cable element

Cable assembly in Twisted Pairs

  1. Pair screening

Pet/Alu foil around each pair

  1. Standing



4 pairs screening assembly

  1. Screen

Tinned copper braid

  1. External sheath

LSOH-FR : Low Smoke « Zero » Halogen  - Flame Retardant

GENERAL

Designation

ACOLAN FIREPROTECT

Ref.

Colour

Diameter

Weight

Superior calorificcapacity

(PCS)

Max pulling tension

mm

Kg/km

MJ/km

KWh/m

N

550 SF-S 4P LSOH-FR

R7297A

Ivory (RAL 9001)

7.40

55

626

0.174

98

550 SFD-S 2x4P LSOH-FR

R7298A

Ivory (RAL 9001)

7.50 x 15.50

116

1301

0.361

196

MECHANICAL

Characteristics

Values

Bending radius

Dynamic (installation)

≥ 60 mm

Static (installed)

≥ 30 mm

Temperature range

In service

- 20°C at + 60°C

At the installation

0°C at + 50°C

Transport and storage

0°C at + 50°C

ELECTRICAL

Characteristics

Values

Complete conductor resistance



≤ 146.4 Ω / km

Resistance unbalance



≤ 2 %

Dielectric strength

Continuous current

1kV during1 minute = No breakdown

Insulation resistance

(500 V)

≥ 5000 MΩ . km

Capacitance unbalance

Real-ground

≤ 1600 pF / km

Characteristic impedance

at 100 MHz

100 ±  5 Ω

Velocity

nominal

78 %

Coupling attenuation



≥ 70 dB

TYPE 1b

Transfer impedance

At     1 MHz

≤  10  mΩ / m

GRADE 1

At   10 MHz

≤  10 mΩ / m

At   30 MHz

≤  20 mΩ / m

At 100 MHz

≤ 30 mΩ / m

Segregation classification acc. to EN 50174-2



“c”

Norms and standards

GENERAL

      logo poe ready        logo ce       CERTIFIÉ C1



Applications
IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 2,5G Base-T,
5G Base-T, 10G Base-T
IEEE 802.3 af (PoE) / 802.3 at (PoE+) / 802.3 bt (4PPoE 90W)
IEEE 802.5 /  FDDI / ATM / RNIS

Cables
IEC 61156-5 ed.2 /  EN 50288-10-1

Cabling system standard
ISO/IEC 11801 2nd ed. / EN 50173-1 / TIA-568.2-D

Cabling system installation standard
EN 50174

Directive / Regulation
RoHS 2011/65/UE
REACH 1907/2006/EC

EUROCLASS

EUROCLASSE CCA - S1 D2 A1



FIRE BEHAVIOUR

Europe

Type

Euroclass

Standards

Declaration of performance

4P

Cca-s1,d2,a1

IEC 60332-1, EN 50399,

 IEC 60754-2

17SFTP002

Zone de Texte: www.acome.fr

2x4P

17SFTP005

For construction works which are not subject to reaction to fire requirements (depending on national regulation), we can provide on demand C1 classification certificate (tests realized by an external laboratory, 4P only). Please contact us for such requests.

Outside Europe

No flame propagation

IEC 60332-1 / EN 60332-1

No fire propagation

NF C 32-070 2.2 (C1)

Low smoke opacity

IEC 61034-2 / EN 61034-2

Low gas corrosivity

IEC 60754-2 / EN 60754-2

Low toxicity

IEC 60754-1 / EN 60754-1

Recommendations

DELIVERY LENGTH

Type

References

individual

Expedition

Type

Weight

EAN code

Quantity

Weight

EAN code

4P LSOH-FR

R7297A-T500

Drum KT de 500 m

30 kg

3700223655052

18 drums

540 kg

3700223632671

R7297A-T1000

Drum XL de 1000 m

60 kg

3700223653768

4 drums

252 kg

3700223633067

2x4P LSOH-FR

R7298A-T500

Drum XL de 500 m

61 kg

3700223653775

4 drums

257 kg

3700223633074

R7298A-T1000

Drum AC de 1000 m

120 kg

-----------------

4 drums

500 kg

-----------------

You want more information ?
