ACOLAN® COPPER FIREPROTECT
Applications
- 10 Gigabit high speed data transmission cables are designed for horizontal cable distribution local computer networks.
- These cables allow the use of the protocol supported by the F class for the 10 GBASE-T applications.
- They are characterized of up to 1000 MHz.
- They are compatibles with PoE, PoE+, UPoE & 4PPoE (PoE++) applications.
See our White Paper on installation conditions on www.acome.com also available on demand.
General characteristics
|
Solid annealed red copper wire, AWG 23 Foam skin Pe insulation Æ < 1.40 mm |
|
Cable assembly in Twisted Pairs |
|
Pet/Alu foil around each pair |
|
4 pairs screening assembly |
|
Tinned copper braid |
|
LSOH-FR+ : Low Smoke « Zero » Halogen - Flame Retardant |
|
Designation ACOLAN FIREPROTECT+ |
Réf. |
Colour |
Diameter |
Weight |
PCS (superior calorific capacity) |
Max. pulling tension |
|
|
mm |
Kg/km |
MJ/km |
KWh/m |
N |
|||
|

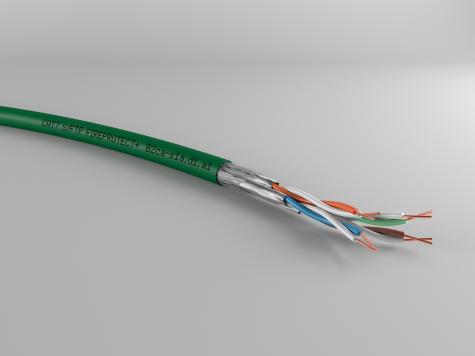

1000 SF-P 4P LSOH-FR+ |
R8446A |
Green (RAL 6024) |
7.70 |
63 |
597 |
0.166 |
95 |
*EC verified : structure 4P
|
Characteristics |
Values |
|
|
Bending radius |
Dynamic (installation) |
≥ 60 mm |
|
Static (installed) |
≥ 30 mm |
|
|
Temperature range |
In service |
- 20°C at + 60°C |
|
At the installation |
0°C at + 50°C |
|
|
Transport and storage |
0°C at + 50°C |
|
|
Characteristics |
Values |
||
|
Complete conductor resistance |
|
≤ 146.4 Ω / km |
|
|
Resistance unbalance |
|
≤ 2 % |
|
|
Dielectric strength |
Continuous current |
1kV during1 minute = No breakdown |
|
|
Insulation resistance |
(500 V) |
≥ 5000 MΩ . km |
|
|
Capacitance unbalance |
Real-ground |
≤ 1600 pF / km |
|
|
Characteristic impedance |
at 100 MHz |
100 ± 5 Ω |
|
|
Velocity |
nominal |
78 % |
|
|
Coupling attenuation |
|
≥ 85 dB |
TYPE 1 |
|
Transfer impedance |
At 1 MHz |
≤ 8 mΩ / m |
GRADE 1
|
|
At 10 MHz |
≤ 8 mΩ / m |
||
|
At 30 MHz |
≤ 10 mΩ / m |
||
|
At 100 MHz |
≤ 20 mΩ / m |
||
|
Segregation classification acc. To EN 50174-2 |
|
“d” |
|
Norms and standards
EC
EC
Applications
IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 2,5G Base-T,
5G Base-T, 10G Base-T
IEEE 802.3 af (PoE) / 802.3 at (PoE+) / 802.3 bt (4PPoE 90W)
IEEE 802.5 / FDDI / ATM / RNIS
Cables
IEC 61156-5 ed.2 / EN 50288-4-1
Cabling system standard
ISO/IEC 11801 2nd ed. / EN 50173-1
Cabling system installation standard
EN 50174
Directive / Regulation
RoHS 2011/65/UE
REACH 1907/2006/EC
Europe
|
Type |
Euroclass |
Standards |
Declaration of performance |
|
|
4P |
B2ca-s1a,d1,a1 |
IEC 60332-1, EN 50399, IEC 60754-2 |
17SFTP012 |
|
Outside Europe
|
No flame propagation |
IEC 60332-1 / EN 60332-1 |
|
No fire propagation |
IEC 60332-3-24 / EN 60332-3-24 |
|
Low smoke opacity |
IEC 61034-2 / EN 61034-2 |
|
Low gas corrosivity |
IEC 60754-2 / EN 60754-2 |
|
Low toxicity |
IEC 60754-1 / EN 60754-1 |
Recommendations
|
Type |
References |
Individual |
Expedition |
||||
|
Type |
Weight |
EAN code |
Type |
Weight |
EAN code |
||
|
4P LSOH-FR+ |
R8446A - T500 |
KT Drum of 500 m |
34 kg |
3700223696147 |
18 drums |
615 kg |
3700223696154 |
|
R8446A - T1000 |
XL Drum of 1000 m |
68 kg |
3700223696161 |
4 drums |
284 kg |
3700223696178 |
|
