B1011A

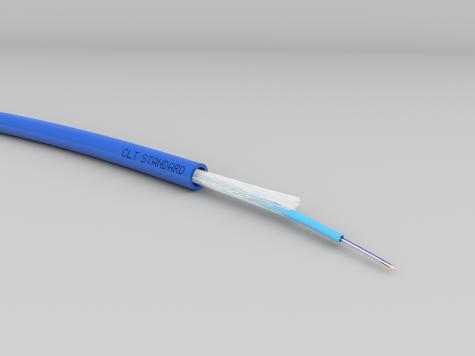

"ACOLAN OPTICAL - CLT STANDARD ZH "

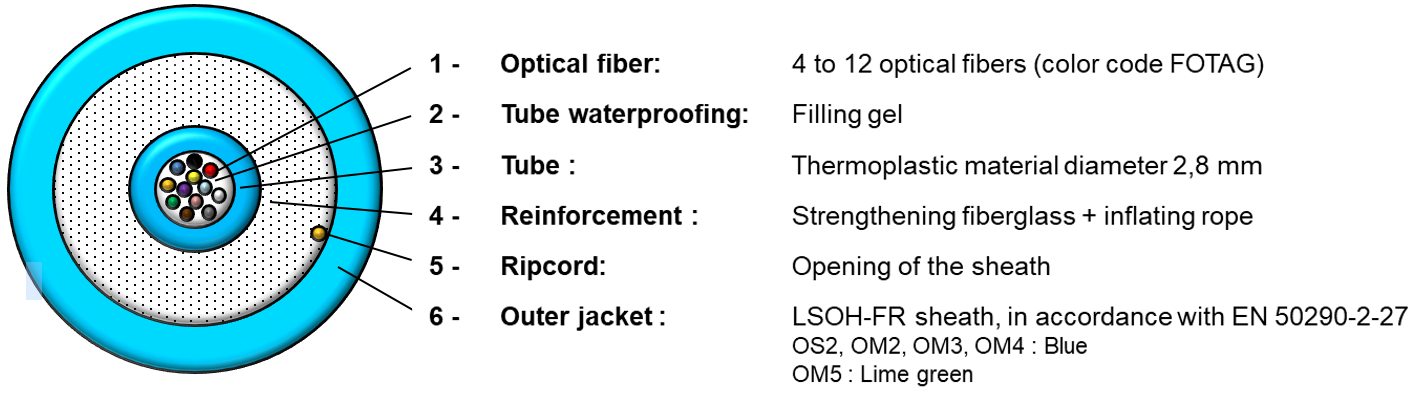

Benefits
- Flexible inner Tube
- Cable with ripcord
- Optimal design to facilitate preparation and access to fibers
Applications
- High speed data transmission cables are designed for all applications (campus, backbone, horizontal cables)and available for all environments (Industrial, Residential and Office Buildings).
- They can be used Indoor or Outdoor
General characteristics
ACOME Protection Index against rodents IPA: ✭✩✩✩✩ = Low Protection
Marking of outer jacket: ACOLAN CLT STD ZH - fiber count & type - product reference + Euroclass + DD/MM/YY hh:mm+ metric
|
Characteristics |
Value |
||
|
Z1313A |
Z1314A |
||
|
4 to 12FO |
16 to 24FO (bi-tubes) |
||
|
Temperature range NF EN 60794-1-2 F1 |
Transport and storage |
- 40°C to + 70°C |
|
|
At the installation |
-5°C to + 50°C |
||
|
In service |
-20°C to + 60°C |
||
|
Maximum pulling force (N) NF EN 60794-1-2 E1 |
2000 |
||
|
Crush resistance (N/10cm) NF EN 60794-1-2 E3 |
2000 |
||
|
Minimum bending radius (mm) NF EN 60794-1-2 E10 & E11 |
10xD |
||
|
Standard packaging |
2100m drums |
||
|
Nominal sheath thickness (mm) |
0,8 |
||
|
Nominal diameter (mm) |
6 |
7,2 |
|
|
Nominal weight (kg/km) |
40 |
52 |
|
Wrapping: cables are supplied with a protective wrap which must be maintained until full use of the product.
Code couleur FOTAG (fibres & tubes)
|
Bleu |
Orange |
Vert |
Marron |
Gris |
Blanc |
Rouge |
Noir |
Jaune |
Violet |
Rose |
Turquoise |
Range
|
Cable Content |
Multimode 50/125 OM2 ACMM50 OM2 |
Multimode 50/125 OM3 ACMM50 OM3 |
Multimode 50/125 OM4 ACMM50 OM4 |
Multimode 50/125 OM5 ACMM50 OM5 |
Monomode 9/125* OS2 ACSM2-D METRO |
|
4 fibres |
B1001A |
B1010A |
B1019A |
|
B1028A |
|
6 fibres |
B1002A |
B1011A |
B1020A |
B1257A |
B1029A |
|
8 fibres |
B1003A |
B1012A |
B1021A |
|
B1030A |
|
12 fibres |
B1004A |
B1013A |
B1022A |
B1258A |
B1031A |
|
16 fibres |
B1005A |
B1014A |
B1023A |
|
B1032A |
|
24 fibres |
B1006A |
B1015A |
B1024A |
B1259A |
B1033A |
Norms and standards
Cable et fibers : EN 60793 / EN 60794-1
Wiring Systems : EN 50173-1 / ISO 11801
Applications : IEEE 802.3 10M to 10Gbit / IEEE 802.5 Token ring ANSI X3T9-5 (FDDI) ATM (155, 622, …)
Europe
|
Number of fiber |
Euroclass |
Declaration of performance |
Standards |
|
4 to 24 fibers |
Dca-s2,d2,a2 |
17CLT0001 |
IEC 60332-1, EN 50399, IEC 60754-2 |
Scan the QR code to access declarations of performance on www.acome.fr.
Outside Europe
|
No flame propagation |
IEC 60332-1 |
|
Low gas corrosivity |
IEC 60754-2 |
|
Low toxicity |
IEC 60754-1 |
