B1137A

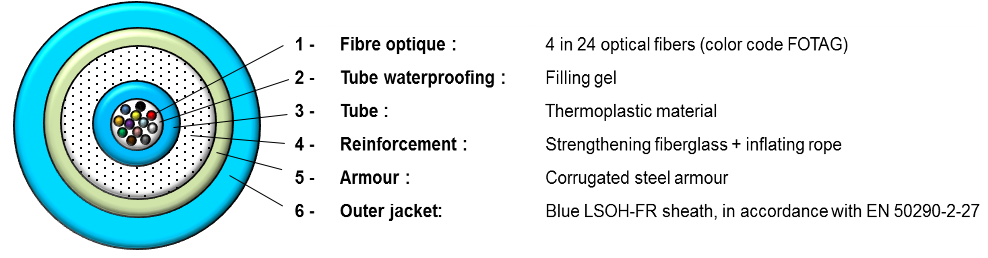

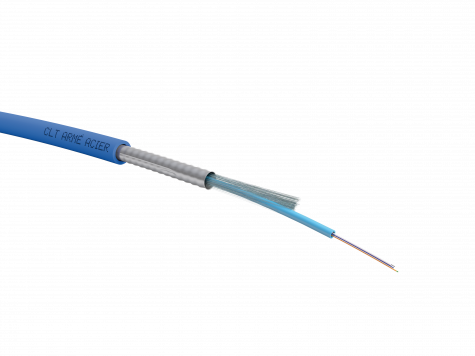

ACOLAN OPTICAL - CLT STAINLESS STEEL ZH "
Benefits
- Flexible inner Tube
- Very Reinforced Protection against rodents
- Optical design to facilitate preparation and access to fibers
Applications
- High speed data transmission cables are designed for all applications (campus, backbone, horizontal cables)and available for all environments (Industrial, Residential and Office Buildings).
- They can be use Indoor or Outdoor.
General characteristics
ACOME Protection Index against rodents IPA: ✭✭✭✭✩ = Very Reinforced Protection
Marking of outer jacket: ACOLAN CLT ARM ZH - fiber count & type - product reference Euroclass + (NF C 32070 C1) + DD/MM/YY + metric
|
Characteristics |
Value |
||
|
Z1027A |
Z1301A |
||
|
4 to 12FO |
16 to 24FO |
||
|
Temperature range |
Transport and storage |
- 40°C at + 70°C |
|
|
At the installation |
-5°C at + 50°C |
||
|
In service |
-40°C at + 70°C |
||
|
Maximum pulling force (N) |
2000 |
||
|
Crush resistance (N/10 cm) |
5000 |
||
|
Minimum bending radius (mm) |
150 |
||
|
Standard packaging |
2100m drums |
||
|
Nominal sheath thickness (mm) |
1,85 |
1,1 |
|
|
Nominal diameter (mm) |
8,7 |
9 |
|
|
Nominal weight (kg/km) |
83 |
110 |
|
Wrapping: cables are supplied with a protective wrap which must be maintained until full use of the product.
Range
|
Cable content |
Multimode 50/125 OM2 ACMM50 OM2 |
Multimode 50/125 OM3 ACMM50 OM3 |
Multimode 50/125 OM4 ACMM50 OM4 |
Single mode 9/125* OS2 ACSM2-D METRO |
|
4 fibers |
B1136A |
B1142A |
B1148A |
B1154A |
|
6 fibers |
B1137A |
B1143A |
B1149A |
B1155A |
|
8 fibers |
B1138A |
B1144A |
B1150A |
B1156A |
|
12 fibers |
B1139A |
B1145A |
B1151A |
B1157A |
|
16 fibers |
B1140A |
B1146A |
B1152A |
B1158A |
|
24 fibers |
B1141A |
B1147A |
B1153A |
B1159A |
*9/125 : ITU-T G.652.D fibers
Norms and standards
Cable and fibers : EN 60793 / EN 60794-1
Wiring system : EN 50173-1 / ISO 11801
Applications : IEEE 802.3 10M to 10Gbit / IEEE 802.5 Token ring ANSI X3T9-5 (FDDI) ATM (155, 622, …)
Europe
|
Number of fibers |
Euroclass |
Declaration of performance |
Standards |
|
4 to 24 fibers |

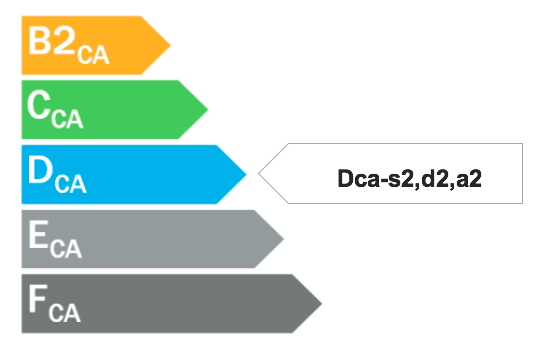

Dca-s2,d2,a2 |
17CLT0003 |
IEC 60754-2 |
IEC 60332-1, EN 50399Scan the QR code to access declarations of performance on www.acome.fr
For construction works which are not subject to reaction to fire requirements (depending on national regulation), we can provide on demand C1 classification certificate for cables from 4 to 12 FO (tests realized by an external laboratory - reference to the standard indicated on the marking of the cable). Please contact us for such requests.
Outside Europe
|
No flame propagation |
IEC 60332-1 |
|
Low gas corrosivity |
IEC 60754-2 |
|
Low toxicity |
IEC 60754-1 |
