B1194A

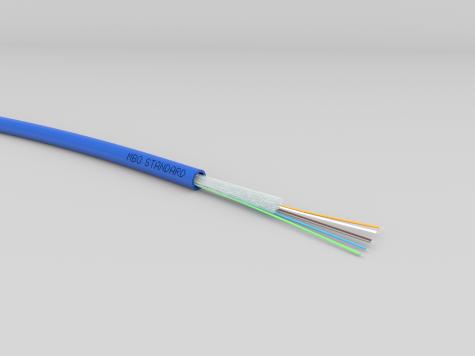

B1194A | "ACOLAN OPTICAL - MBO STANDARD ZH "

Reference : B1194A
12xOM3 TIGHT IN/OUT ZH STANDARD DIELECTRICAL - BLUE

Benefits

  • Universal range Indoor/Outdoor with swelling rope
  • Stripping becomes faster with our new tight Rapid Strip Fiber (RS 900)
  • Design optimized for connector mounting or Fiber splicing



Applications

High-speed data transmission cables are designed for all applications (campus, backbone, horizontal cables) and available for all environments (Industrial, Residential and Office Buildings).

General characteristics

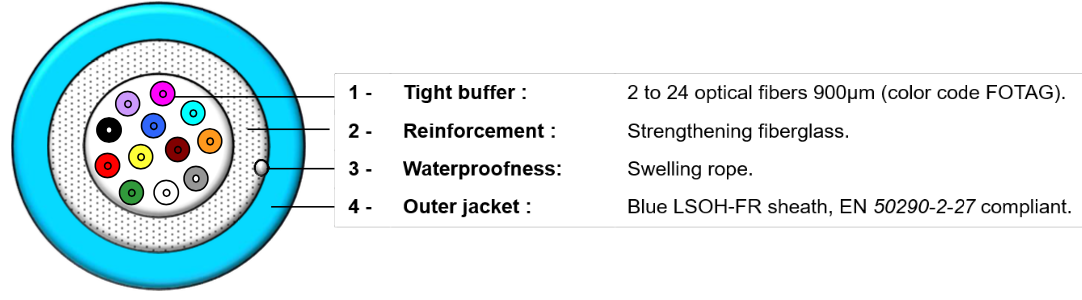

COUPE

ACOME Protection Index against rodents IPA: ✭✩✩✩✩ = Low Protection

Marking of outer jacket: ACOLAN MBO STD ZH - fiber count & type - product reference - Euroclass –JJ/MM/AA hh:mm + metric

GENERAL

Characteristics

Value

MBO 2 fibers

MBO 4 fibers

MBO 6 fibers

MBO 8 fibers

MBO 12 fibers

MBO 24 fibers

Z1400A

Z1401A

Z1403A

Z1405A

Temperature range

Transport and storage

-40°C to + 70°C

At the installation

-5°C to + 50°C

In service

-30°C to + 70°C

Maximum pulling force (N)

500

800

1600

Crush resistance (N/cm)

200

Minimum bending radius (mm)

10 x cable diameter

Standard packaging

2100m drums

Nominal sheath thickness (mm)

1

Nominal diameter (mm)

5,8

6,6

7,5

9,8

Nominal weight (kg/km)

28

35

39

44

49

89

Wrapping : cables are supplied with a protective wrap which must be maintained until full use of the product



COLOR CODE

Code couleur FOTAG

Bleu

Orange

Vert

Marron

Gris

Blanc

Rouge

Noir

Jaune

Violet

Rose

Turquoise





Optical fibers n°13 to 24 are identified by a black mark (the buffer color of the black fiber is replaced by dark green)



Range

Cable Content

Multimode

50/125 OM2

ACMM50

Multimode

50/125 OM3

ACMM50

Multimode

50/125 OM4

ACMM50

Mono mode 9/125*

OS2

ACSM2-D PREMIUM

2 fibres

B1184A

B1190A

B1196A

B1202A

4 fibres

B1185A

B1191A

B1233A

B1203A

6 fibres

B1186A

B1192A

B1234A

B1204A

8 fibres

B1187A

B1193A

B1235A

B1205A

12 fibres

B1188A

B1194A

B1236A

B1206A

24 fibres

B1189A

B1195A

B1232A

B1207A

*9/125 : G652 fibres

Norms and standards

GENERAL

logos cables de france       logo reach        logo ce



Cable et fibers : EN 60793 / EN 60794-1

Wiring system : EN 50173-1 / ISO 11801

Applications : IEEE 802.3 10M to 10Gbit  / IEEE 802.5 Token ring ANSI X3T9-5 (FDDI)  ATM (155, 622, …)

EUROCLASS

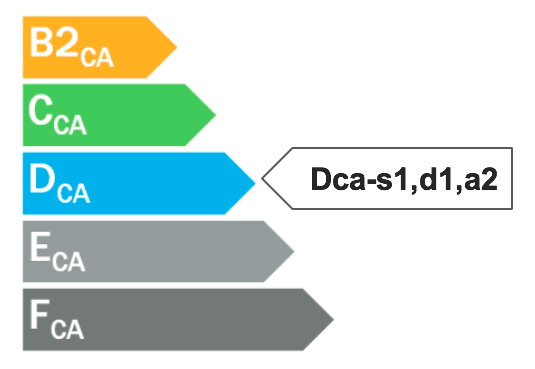

euroclasse-dca-s1-d1-a2_1



FIRE BEHAVIOUR

Europe

Number of fibers

Euroclass

Declaration of performance

Standards

2 to 24 fibers

Dca-s1,d1,a2

17MBO0003

IEC 60332-1, EN 50399, IEC 60754-2

QR

Scan the QR code to access declarations of performance on www.acome.fr

Outside Europe

No flame propagation

IEC 60332-1

Low gas corrosivity

IEC 60754-2

Low toxicity

IEC 60754-1
