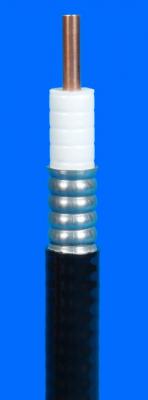

image produit M5445Z

M5445Z | HYPERCELL

Reference : M5445Z
HPL 50-1/2F ALU - Black Polyethylene Jacket

General characteristics

Inner Conductor: Copper clad Aluminum Outer Diameter: 4.8 mm
Dielectric: Foam Polyethylene Diameter: 11.9 mm
Outer Conductor: Corrugated Aluminum Diameter over outer conductor: 13.9 mm
Jacket: Black Polyethylene Diameter: 16.0 mm



Marking (Metric): ACOME HYPERCELL COAX HPL 50-1/2F ALU M5445 LOT X lot No. XXXXm



MECHANICAL

Bending radius:

  • Operating : 125 mm – Min
  • Installation : 70 mm – Min

Tensile Strength: 900 N – Max

Weight: 179 kg/km



ENVIRONMENTAL

Temperature range:

  • Operating: -40°C / +85°C
  • Installation: -25°C / +60°C
  • Storage: -70°C / +85°C

Halogen content: IEC 60754-1

Test methods: IEC 60096-0-1, 61196-1, 60966-1

ELECTRICAL

Impedance : 50 ± 1 Ω
Return loss :

  • 400 ~ 500 MHz ≤ -26.5 dB
  • 800 ~ 1000 MHz ≤ -26.5 dB
  • 1700 ~ 2200 MHz ≤ -24 dB
  • 2500 ~ 2700 MHz ≤ -23.5 dB

Capacitance: 78 pF/m
Passive Intermodulation : ≤-158 dBc (-163 dBc typical)
Velocity: 86%
Dielectric constant: 1.35
Screening effectiveness: > 120 dB
Operating frequency: ≤ 8 GHz
Cut-off frequency: 9.5 GHz
Peak power rating: 38 kW
Operating voltage: 1.6 kV RMS
Insulation Resistance: > 10000 MΩ.km
DC resistance:

  • Inner conductor: ≤ 1.60 Ω/km
  • Outer conductor: ≤ 2.76 Ω/km



Frequency

(MHz)

Attenuation

(dB/100m)

@ 20°C

Typical

Power kW

@ 40°C-Ambient

Temperature

Inner conductor:

100°C

30

1.29

6.89

80

2.11

4.20

150

2.90

3.02

450

5.14

1.69

824

7.06

1.22

900

7.40

1.20

960

7.65

1.16

1000

7.81

1.13

1500

9.68

0.89

1700

10.37

0.83

1800

10.70

0.81

1900

11.02

0.79

2000

11.31

0.78

2200

11.90

0.75

2300

12.21

0.73

2400

12.51

0.71

2500

12.81

0.69

3000

14.12

0.62

3300

14.87

0.59

3400

15.12

0.58

3500

15.36

0.57

3600

15.60

0.55

3800

16.07

0.53
