photo produit ACOME C0056E

C0056E
HYPERCELL

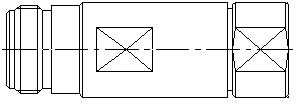

HPL N female connector

General characteristics

Inner Conductor:

Silver - plated bronze

Dielectric:

PTFE

Body:

Copper alloy - plated brass

Clamping and Coupling Nut:

Nickel - plated brass

Clamping Nut Waterproof:

Silicone O-ring

MECHANICAL & ENVIRONMENTAL
Interface Durability: 500 cycles
Temperature: Operating -40°C / +85°C
Installation -25°C / +55°C
Storage -50°C / +85°C
Weight: 60 g
Waterproof Index: IP68
RoHS Compliance: Yes
ELECTRICAL
Impedance: 50 ± 1 Ω
Operating Frequency Band: DC ~ 4GHz
VSWR : DC ~ 3 GHz : ≤ 1.10
3 ~ 4 GHz : ≤ 1.20

3rd Order Passive Intermodulation, Measured In Swept

Frequency Mode with 2  20W carriers, F ≤ 1880 MHz:

Static : ≤ -155 dBc
Dynamic : ≤ -145 dBc
Voltage Test (at sea level): 1500 V eff / 50 Hz
Operating Voltage (at sea level): 900 V eff / 50 Hz
Insulation Resistance: ≥ 5000 MΩ
Contact Resistance: Inner contact: ≤ 1.5 mΩ
Outer contact: ≤ 1.0 mΩ

Range

Compatibility with ACOME HPL 50 -1/4F

M2930, M2932, M5309

Test Methods: IEC 60169-16, IEC 62037-3, IEC 60529

Recommendations

INSTALLATION

ANM - C0056E
