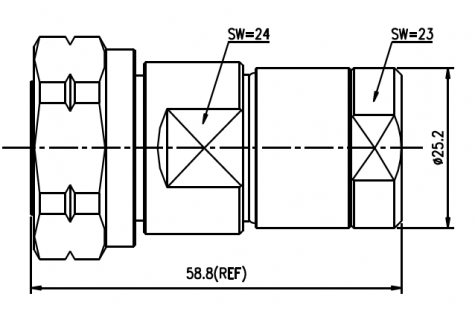

photo produit ACOME C0006E

C0006E | HYPERCELL

Reference : C0006E
HPL 7/16 Din male connector

General characteristics

Inner Conductor:

Silver - plated bronze

Dielectric:

PTFE

Body:

Copper alloy - plated brass

Clamping and Coupling Nut:

Nickel - plated brass

Clamping Nut Waterproof:

Silicone O-ring



MECHANICAL & ENVIRONMENTAL
Interface Durability: 500 cycles
Temperature: Operating -40°C / +85°C
Installation -25°C / +55°C
Storage -50°C / +85°C
Weight: 150 g
Waterproof Index: IP68
RoHS Compliance: Yes



ELECTRICAL
Impedance: 50 ± 1 Ω
Operating Frequency Band: DC ~ 4GHz
VSWR: DC ~ 3 GHz : ≤ 1.10
3 ~ 4 GHz : ≤ 1.20

3rd Order Passive Intermodulation, Measured In Swept

Frequency Mode with 2 x 20W carriers, F ≤ 1880 MHz:

 ≤ -160 dBc
Voltage Test (at sea level): 3000 V eff / 50 Hz
Operating Voltage (at sea level): 1600 V eff / 50 Hz
Insulation Resistance: ≥ 10000 MΩ
Contact Resistance: Inner contact: ≤ 0.4 mΩ
Outer contact: ≤ 1.5 mΩ



Range

Compatibility with ACOME HPL 50 -1/2F

M1473, M2831, M5445,M5454,M5453, M5398,M5644,M5646

Test Methods: IEC 61169-4, IEC 62037-3, IEC 60529

Recommendations

INSTALLATION INSTRUCTION

ANM - C0006E
