C0901E | HYPERCELL

Reference : C0901E

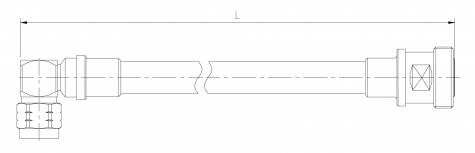

Jumper 1/2SF PE N Male Elbow – 7/16 Din Female

General characteristics

Cable:

ACOME 50-1/2SF PE cable

Connector:

N male elbow / 7/16 Din female

Assembly:

Inner and outer contact 100% soldered and with thermal shrink tube



MECHANICAL & ENVIRONMENTAL

Material and Finish of Connector Body:

Copper alloy - plated brass

Material and Finish of Coupling Nut:

Nickel - plated brass

Material and Finish of Inner Conductor:

Silver - plated bronze

Coupling Waterproof:

Silicone Rubber O-ring

Coupling Torque:

N interface

2.5 N.m Max.
Din interface 30 N.m Max.

Minimum Bending Radius:

25 mm



ENVIRONMENTAL

Operating Temperature Range:

-55°C < θ < + 70°C

Waterproof Index:

IP68 (1m /24 h)

RoHS Compliance:

Yes

Test Methods:

IEC 61169, IEC 60529



ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Range: DC ~ 3GHz
RMS Power (40 ℃ - 2 GHz): 0.52 KW
Velocity: 83%

Passive Intermodulation Measured In Swept

Frequency Mode, With 2X20W Carries:

IM3 at 900MHz ≤ -145 dBc
IM3 at 1800MHz ≤ -145 dBc
IM7 at 2100MHz ≤ -145 dBc



Range

Length (m) Product number Weight (g) Frequency 0/1000MHz Frequency 1000/2200MHz Frequency 2200/3000MHz
RL (dB) ATT (dB) RL (dB) ATT (dB) RL (dB) ATT (dB)
1.5 C0898E 455 -28 0.28 -26 0.43 -24 0.51
2 C0899E 542 -28 0.33 -26 0.51 -24 0.61
2.5 C0900E 630 -28 0.39 -26 0.60 -24 0.71
3 C0901E 720 -28 0.44 -26 0.68 -24 0.81
5 C2019E 1060 -28 0.67 -26 1.02 -24 1.22
