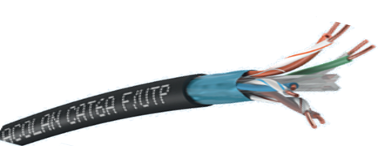

ACOLAN® COPPER
Benefits
- Indoor / Outdoor use
- PoE ++ Ready
- Compatible with direct attach plug RJ45
- 10 Gb/s
- Ideal for connecting terminals (cameras, …)
Applications
- 10 Gigabit High speed data transmission cables are designed for backbone distribution local computer networks.
- Protected by a black UV resistant LSOH-FR sheath for outdoor use.
- These cables allow the use of the protocol supported by the EA class for the 10 GBASE-T applications.
- They are characterized of up to 550 MHz.
- They are compatibles with PoE & PoE+, UPoE & 4PPoE (PoE++) applications.
See our White Paper on installation conditions on www.acome.com also available on demand.
General characteristics
|
Solid annealed red copper wire, AWG 24 Foam skin Pe insulation Æ <1.10 mm
|
|
Cable assembly in Twisted Pairs |
|
Cross separator |
|
4 pairs assembly with overall polyester tape |
|
Pet/Alu foil and tinned drain wire AWG26 |
|
Polyester tape |
|
LSOH-FR: Low Smoke « Zero » Halogen – Flame Retardant and UV resistant |
|
Designation ACOLAN |
Ref. |
Colour |
Diameter |
Weight |
Superior calorific capacity (PCS) |
Max pulling tension |
|
|
mm |
Kg/km |
MJ/km |
KWh/m |
N |
|||
|
550 FU 4P LSOH-FR IN&OUT |
R7690A |
Black |
7,90 |
63 |
956 |
0.266 |
90 |
|
Characteristics |
Values |
|
|
Bending radius |
Dynamic (installation) |
≥ 65 mm |
|
Static (installed) |
≥ 35 mm |
|
|
Temperature range |
In service |
- 40°C at + 75°C |
|
At the installation |
- 20°C at + 60°C |
|
|
Transport and storage |
- 40°C at + 75°C |
|
|
Waterproofness |
|
IP67 |
|
Characteristics |
Values |
||
|
Complete conductor resistance |
|
≤ 190 Ω / km |
|
|
Resistance unbalance |
|
≤ 2 % |
|
|
Dielectric strength |
Continuous current |
1kV during1 minute = No breakdown |
|
|
Insulation resistance |
(500 V) |
≥ 5000 MΩ . km |
|
|
Capacitance unbalance |
Real-ground |
≤ 1600 pF / km |
|
|
Characteristic impedance |
at 100 MHz |
100 ± 5 Ω |
|
|
Velocity |
nominal |
78 % |
|
|
Coupling attenuation |
|
≥ 55 dB |
TYPE 2 |
|
Transfer impedance |
At 1 MHz |
≤ 40 mΩ / m |
GRADE 2 |
|
At 10 MHz |
≤ 40 mΩ / m |
||
|
At 30 MHz |
≤ 50 mΩ / m |
||
|
At 100 MHz |
≤ 200 mΩ / m |
||
|
Segregation classification acc. EN 50174-2 |
|
“c” |
|
Norms and standards
Applications
IEEE 802.3 :10Base-T; 100Base-TX;1000Base-T; 2,5GBase-T ; 5GBase-T ; 10GBase –T
IEEE 802.3 af (PoE) / 802.3 at (PoE+) / 802.3 bt (4PPoE 90W)
IEEE 802.5 / FDDI / ATM / RNIS
Cables
IEC 61156-5 ed.2 / EN 50288-10-1
Cabling system standard
ISO 11801 2nd ed. / EN 50173-1 / TIA-568-C.2
Cabling system installation standard
EN 50174
Directive / Regulation
RoHS 2011/65/UE
REACH 1907/2006/EC
Europe
|
Type |
Euroclass |
Standards |
Declaration of performance |
|
|
4P |
Dca-s2,d2,a1 |
IEC 60332-1, EN 50399, IEC 60754-2 |
18FUTP013 |
|
Outside Europe
|
No flame propagation |
IEC 60332-1 / EN 60332-1 |
|
Low smoke opacity |
IEC 61034-2 / EN 61034-2 |
|
Low gas corrosivity |
IEC 60754-2 / EN 60754-2 |
|
Low toxicity |
IEC 60754-1 / EN 60754-1 |
Recommendations
|
Type |
References |
Individual |
Expedition |
|||||
|
Type |
Weight |
EAN code |
Quantity |
Weight |
EAN code |
|||
|
4P LSOH-FR |
R7690A-T500 |
Drum KL of 500 m |
34 kg |
3700223635313 |
12 drums |
422 kg |
3700223635320 |
|
|
R7690A-RB200 |
Box of 200 m |
15 kg |
3700223638444 |
18 boxes |
284 kg |
3700223638451 |
||
|
R7690A-C100 |
Coil of 100 m |
6.3 kg |
3700223635344 |
60 coils |
388 kg |
3700223635351 |
||
