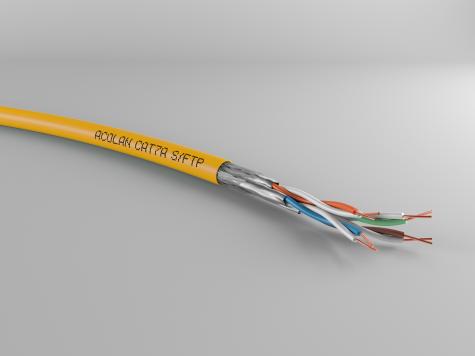

PRODUCT PICTURE ACOME R8482A

R8482A-T500
ACOLAN® COPPER

S/FTP Cat.7a 1500 MHz 2x4P LSOH-FR DRUM 500m YELLOW

Applications

  • 10 Gigabit high speed data transmission cables are designed for horizontal cable distribution local computer networks.
  • These cables allow the use of the protocol supported by the class FA for the 10 GBASE-T applications.
  • They are characterized of up to 1500 MHz.
  • They are compatibles with PoE & PoE+, UPoE & 4PPoE (PoE++) applications.

See our White Paper on installation conditions on www.acome.com also available on demand.

General characteristics

Caractéristiques_acome_acolan_cuivre



  1. Conductor

Solid annealed red copper wire, AWG 22
Foam skin Pe insulation  ≤ 1.52 mm

  1. Cable element

Cable assembly in Twisted Pairs

  1. Pair screening

Pet/Alu foil around each pair

  1. Stranding

4 pairs screening assembly

  1. Screen

Tinned copper braid

  1. External sheath

LSOH-FR : Low Smoke « Zero » Halogen – Flame Retardant



GENERAL
Designation ACOLAN FIREPROTECT Ref. Colour Diameter Weight Superior calorific capacity (PCS) Max pulling tension
mm Kg/km MJ/km KWh/m N
1500 SF-S 4P LSOH-FR  R8481A Yellow 7.70 57 521 0,145 125
1500 SFD-S 4P LSOH-FR R8482A Yellow 7.90 x 16.00 124 1169 0,325 250





MECHANICAL
Characteristics Values
Bending radius Dynamics (installation) ≥ 70 mm
Static (installed) ≥ 35 mm
Temperature range In service - 20°C at + 60°C
At the installation 0°C at + 50°C
Transport and storage 0°C at + 50°C



ELECTRICAL

Electrical characteristics at 20°C (68°F)

Characteristics Values
Complete conductor resistance ≤ 120 Ω / km
Resistance unbalance ≤ 2 %
Dielectric strengh Continuous current 1kV during 1 minute = no breakdown
Insulation resistance (500 V) ≥ 5000 MΩ . km
Capacitance unbalance Real-ground ≤ 1200 pF / km
Characteristic impedance at 100 MHz 100 ±  5 Ω
Velocity nominal 78%
Coupling attenuation ≥ 85 dB TYPE 1b
Transfert impedance at    1 MHz ≤     10 mΩ / m GRADE 1
at   10 MHz ≤     10 mΩ / m
at   30 MHz ≤   20 mΩ / m
at 100 MHz ≤   30 mΩ / m
Segregation classification acc. to EN 50174-2 ‘’d’’



Frequency (MHz)    4 10 20 62.5 100 250 300 600 1000 1200 1500**
Attenuation. (dB/100m) Typical value 3.4 5.2 7.4 13.4 16.8 27.4 30 43.0 57.8 64.0 73.0
Imposition (max)* 3.7 5.8 8.2 14.6 18.5 29.7 32.7 47.1 61.9 -

-

Next (dB) Typical value 100 100 100 100 100 92 90 87 85 83 80
Imposition (min)* 75 75 75 75 73 67 66 61 58 - -
PS Next (dB) Typical value 97 97 97 97 97 89 87 84 82 80 77
Imposition (min)* 75 75 75 73 70 64 63 58 55   -
ELFEXT (dB/100 m)  Typical value 90 90 85 84 80 72 69 61 56 53 50
Imposition (min)* 78 74 68 58 54 46 44 38 34 - -
PS ELFEXT (dB/100 m)  Typical value 87 87 82 81 77 69 66 58 53 50 47
Imposition (min)* 75 71 65 55 51 43 41 35 31 - -
Return Loss (dB)  Typical value 26 28 28 28 26 24 22 19 18 18 17
Imposition (min)* 23 25 25 21.5 20.1 17.3 17.3 17.3 15.1 - -

* Category 7a according IEC 61 156-5 Ed. 2nd
** For information only



Norms and standards

GENERAL

logos cables de france   logo poe ready      logo ce



Applications
IEEE 802.3 :10Base-T; 100Base-TX;1000Base-T; 2,5GBase-T ;  5GBase-T ; 10GBase –T
IEEE 802.3 af (PoE) / 802.3 at (PoE+) / 802.3 bt (4PPoE 90W)
IEEE 802.5 /  FDDI / ATM / RNIS

Cable
IEC 61156-5 ed.2 /  EN 50288-9-1

Cabling system standard

ISO/IEC 11801 2nd ed. / EN 50173-1

Cabling system installation standards

EN 50174

Directive / Regulation

RoHS 2011/65/UE
REACH 1907/2006/EC



EUROCLASS

Euroclasse_acome_acolan_cuivre



Fire behaviour

Europe

Type Euroclass Standards Declaration of performance
4P Dca-s2,d2,a1 IEC 60332-1, EN 50399,  IEC 60754-2 20SFTP018
2x4P 20SFTP019



Hors Europe

No flame propagation IEC 60332-1 / EN 60332-1
Low smoke opacity IEC 61034-2 / EN 61034-2
Low gas corrosivity IEC 60754-2 / EN 60754-2
Low toxicity IEC 60754-1 / EN 60754-1



Recommendations

DELIVERY LENGTH

Type

References

Individual

Expedition

Type

Weight

EAN code

Quantity

Weight

EAN code

4P LSOH-FR

R8481A-T500

drum

KT of 500 m

31 kg

3700223642267

12 drums

389 kg

3700223642274

R8481A-T1000

drum XL of 1000 m

62 kg

3700223644384

4 drums

262 kg

3700223644377

2 x 4P LSOH-FR

R8482A-T500

drum XL of 500 m

67 kg

3700223644278

4 drums

282 kg

3700223644285
