R7287A-T500 | ACOLAN® COPPER

Reference : R7287A-T500
F/FTP Cat.6 450MHz 2x4P LSOH-FR DRUM 500m IVORY

Applications

  • 2,5 Gigabit high speed data transmission cables are designed for horizontal cable distribution local computer networks.
  • These cables allow the use of the protocol supported by the E class applications.
  • They are characterized of up to 450 MHz.
  • They are compatibles with PoE, PoE+ & UPoE applications.

General characteristics

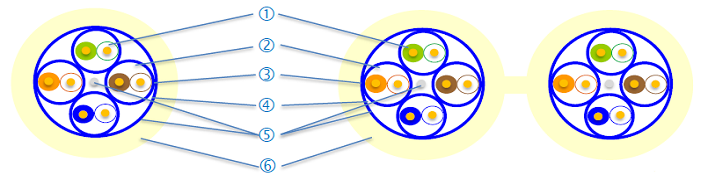

Caractéristiques_acome_acolan_cuivre



  1. Conductor

Solid annealed red copper wire AWG 23
Foam skin Pe insulation  ≤ 1.45 mm

  1. Cable element

Cable assembly in Twisted Pairs

  1. Pair screening

Pet/Alu foil around each pair

  1. Stranding

4 pairs screening assembly

  1. Screen

Pet/Alu foil and tinned drain wire AWG26

  1. External sheath

LSOH-FR: Low Smoke « Zero » Halogen – Flame Retardant



GENERAL
Designation ACOLAN Ref. Colour Diameter Weight Superior calorific capacity (PCS) Max pulling tension
mm Kg/km MJ/km KWh/m N
450 FF 4P LSOH-FR  R7249A Ivory 7.30 53 550 0,153 98
450 FFD 2x4P LSOH-FR R7287A Ivory 7.30 x 15.30 102 1125 0,312 196





MECHANICAL
Characteristics Values
Bending radius Dynamic (installation) ≥ 60 mm
Static (installed) ≥ 30 mm
Temperature range In service - 20°C à + 60°C
At the installation 0°C à + 50°C
Transport and storage 0°C à + 50°C



ELECTRICAL

Electrical characteristics at 20°C (68°F)

Characteristics Values
Complete conductor resistance ≤ 146.4 Ω / km
Resistance unbalance ≤ 2 %
Dielectric strength Continuous current 1kV during1 minute = No breakdown
Insulation resistance (500 V) ≥ 5000 MΩ . km
Capacitance unbalance Real-ground ≤ 1600 pF / km
Characteristic impedance à 100 MHz 100 ±  5 Ω
Velocity nominal 78%
Coupling attenuation ≥ 70 dB TYPE 1b
Transfer impedance à     1 MHz ≤   30 mΩ / m GRADE 2
à   10 MHz ≤   30 mΩ / m
à   30 MHz ≤   50 mΩ / m
à 100 MHz ≤   100 mΩ / m
Segregation classification acc. EN 50174-2 ‘’c’’



Transmission characteristics at 20° C

Frequency
(MHz)
  4 10 20 62.5 100 250 300** 450**
   Attenuation (dB/100m) Typical value 3.6 5.7 8.3 14.8 19 31 34 43
Imposition (max)* 3.8 6 8.5 15.5 19.9 33 - -
Next (dB)  Typical value 90 90 90 90 90 83 82 80
Imposition (min)* 65.3 59.3 54.8 47.4 44.3 38.3 - -
ACR (dB) Typical value 86.4 84.3 81.7 75.2 71 52 48 37
Imposition (min)* 61.5 53.3 46.3 31.9 24.4 5.3   -
PS Next (dB) Typical value 87 87 87 87 87 80 79 77
Imposition (min)* 63.3 57.3 52.8 45.4 42.3 36.3 - -
ELFEXT (dB/100 m) Typical value 80 80 79 77 73 65 64 60
Imposition (min)* 58 50 44 34.1 30 22 - -
PS ELFEXT (dB/100 m) Typical value 77 77 76 74 70 62 61 57
Imposition (min)* 55 47 41 31.1 27 19 - -
Return Loss (dB) Typical value 26 28 28 26 24 22 19 19
Imposition (min)* 23 25 25 21.5 20.1 17.3 - -

* Category 6 according IEC 61156-5
** For information only



Norms and standards

GENERAL

  logo poe      logo ce

Applications

  • IEEE 802.3 :10Base-T; 100Base-TX;1000Base-T; 2,5GBase-T
  • IEEE 802.3 af (PoE) / 802.3 at (PoE+)
  • IEEE 802.5 / FDDI / ATM / RNIS

Cables

  • IEC 61156-5 ed.2 / EN 50288-5-1

Cabling System standards

  • ISO 11801 2nd ed. / EN 50173-1 / TIA 568.2-D

Cabling System installation standards

  • EN 50174

Directive / Regulation

  • RoHS 2011/65/UE
  • REACH 1907/2006/EC



EUROCLASS

Euroclasse_acome_acolan_cuivre



Fire behaviour

Europe

Type Euroclass Standards Declaration of performance
4P Dca-s2,d2,a1 IEC 60332-1, EN 50399,  IEC 60754-2 17FFTP001
2x4P 17FFTP005



Outside Europe

No flame propagation IEC 60332-1 / EN 60332-1
Low smoke opacity IEC 61034-2 / EN 61034-2
Low gas corrosivity IEC 60754-2 / EN 60754-2
Low toxicity IEC 60754-1 / EN 60754-1



Recommendations

DELIVERY LENGTH

Type

References

Unitaire

Expedition

Type

Weight

EAN code

Quantity

Weight

EAN code

4P LSOH-FR

R7249A-T500

Touret KT de 500 m

29 kg

3700223666744

18 tourets

529 kg

3700223631575

R7249A-T1000

Touret XL de 1000 m

58 kg

3700223666751

4 tourets

246 kg

3700223631582

2 x 4P LSOH-FR

R7287A-T500

Touret XL de 500 m

58 kg

3700223666768

4 tourets

238 kg

3700223631834

R7287A-T1000 Touret AC de 1000 m 112 kg 3700223666775 4 tourets 460 kg 3700223631841
