Product
R7550A-ST4000

R7550A-ST4000
ACOLAN® COPPER

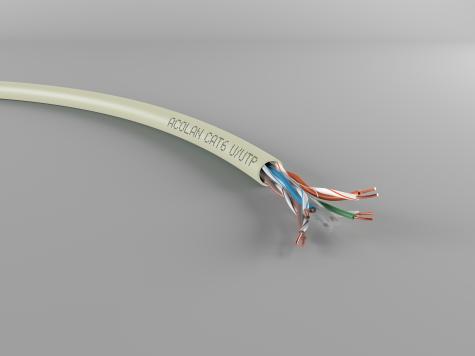

U/UTP Cat.6 400 MHz LSOH 4P DRUM of 4000m - IVORY

Applications


  • High speed data transmission cables are designed for backbone distribution local computer networks.
  • These cables are permitted the protocol supported by the class E.
  • They are characterized of up to 400 MHz.
  • They are compatibles with PoE & PoE+, UPoE applications.

General characteristics





         Characteristics_acome_acolan_copper

  1. Conductor

Solid annealed red copper wire, AWG 24
Colored polyethylene insulation  ≤ 0.95 mm

  1. Cable element

Cable assembly in Twisted Pairs

  1. Pair screening

Symetrical cross separator

  1. Stranding

4 pairs screening assembly

  1. External sheath

LSOH-FR : Low Smoke « Zero » Halogen  - Flame Retardant

GENERAL

Designation

ACOLAN

Ref.

Colour

Diameter

Weight

Superior calorificcapacity

(PCS)

Max pulling tension

mm

Kg/km

MJ/km

KWh/m

N

400 UU 4P LSOH-FR

R7550A-S

Ivory

5.30

33

394

0.110

90



MECHANICAL

            Characteristics

Values

Bending radius

Dynamic (installation)

≥ 45 mm

Static (installed)

≥ 23 mm

Temperature range

In service

- 20°C at + 60°C

At the installation

0°C at + 50°C

Transport and storage

0°C at + 50°C



ELECTRICAL

Transmission characteristics at 20° C

            Characteristics

Values

Complete conductor resistance



≤ 190 Ω / km

Resistance unbalance



≤ 2 %

Dielectric strength

Continuous current

1kV during1 minute = No breakdown

Insulation resistance

(500 V)

≥ 5000 MΩ . km

Capacitance unbalance

Real-ground

≤ 1600 pF / km

Characteristic impedance

at 100 MHz

100 ±  5 Ω

Velocity

nominal

66 %

Coupling attenuation



≥ 40 dB

TYPE 3

Segregation classification acc. to EN 50174-2





‘’c’’



Frequency
(MHz)
  4 10 20 62.5 100 250 300** 400**
Attenuation (dB/100m) Typical value 3.7 5.8 8.4 15.0 19.2 31.5 34.5 42
Imposition (max)* 3.8 6 8.5 8.5 19.9 33 - -
Next (dB)  Typical value 69 63 59 51 48 42 41 38
Imposition (min)* 65.3 59.3 54.8 47.4 44.3 38.3 - -
ACR (dB) Typical value 65.3 57.2 50.6 36 28.8 10.5 6.5
Imposition (min)* 61.5 53.3 46.3 31.9 24.4 5.3 - -
PS Next (dB) Typical value 66 60 56 48 45 39 38 35
Imposition (min)* 63.3 57.3 52.8 45.4 42.3 36.3 - -
ELFEXT (dB/100 m) Typical value 73 65 59 49 45 37 35 32
Imposition (min)* 58 50 44 34.1 30 22 - -
PS ELFEXT (dB/100 m) Typical value 70 62 56 46 42 34 32 29
Imposition (min)* 55 47 41 31.1 27 19 - -
Return Loss (dB) Typical value 27 27 27 25.8 25 22 22 21
Imposition (min)* 23 25 25 21.5 20.1 17.3 - -





Norms and standards

GENERAL

    logo poe       logo ce

400 MHz

Applications

  • IEEE 802.3: 10Base-T; 100Base-TX; 1000Base-T ;
  • 1000Base-T ; 2,5G Base-T
  • IEEE 802.3 af (PoE) / 802.3 at (PoE+)
  • IEEE 802.5 / FDDI / ATM / RNIS

Cables

  • IEC 61156-5 ed.2 / EN 50288-6-1

Cabling system standard

  • ISO/IEC 11801 2nd ed. / EN 50173-1 / TIA-568.2-D

Cabling system installation standard

  • EN 50174

Directive / Regulation

  • RoHS 2011/65/UE
  • REACH 1907/2006/EC

EUROCLASS

 Euroclasse_acome_acolan_cuivre



FIRE BEHAVIOUR

Europe

Type

Euroclass

Standards

Declaration of performance

4P

Eca

IEC 60332-1

16UUTP003

Zone de Texte: www.acome.fr

Outside Europe

No flame propagation

IEC 60332-1 / EN 60332-1

Low smoke opacity

IEC 61034-2 / EN 61034-2

Low gas corrosivity

IEC 60754-2 / EN 60754-2

Low toxicity

IEC 60754-1 / EN 60754-1

Recommendations

DELIVERY LENGTH

Type

References

Individual

Expedition

Type

Weight

EAN code

Quantity

Weight

EAN code

4P LSOH

R7550A - SB305

Acopack of 305 m

10.70 kg

3700223681457

24 boxes

280 kg

3700223681464

R7550A – ST1000

Drum of 1000 m

35 kg

3700223681624

18 drums

652 kg

3700223681631

R7550A – ST4000

Drum of 4000 m

146 kg

3700223681600

1 drums

164 kg

3700223681600
