ACOPTIC - UND1344

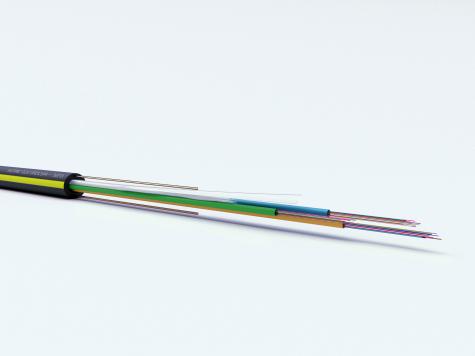

7mm Overhead Ultra Light Weight ( OH ULW ) cable with span up to 55m, from 12 to 60fo
Benefits
- PIA listed, compliance to ULW UK expectations
- Easier and safer fibre access, thanks to the embedded ACOME Compact-Tube® technology, just pinch and drag (no tool needed, no particles left)
- Self supported cable
- Made in Western Europe
Applications
- ACOPTIC® brings together ACOME’s optical cables solutions for Telecom networks.
- UND1344 is generally used for overhead in the distribution part of the FTTH access network.
- ACOME has specifically developed this UND1344 range of light weight drop type design and construction cables, for installation in the UK Fibre Network in Overhead and Underground environments
- UND1344 supports span lengths up to 55m or, exceptionally, 70m (contact us to validate your case)
General characteristics
- 250/200µm Single Mode fibres (G6522D, G657 A1/A2)
- Compact Tubes® 12 fibres bundles
- Watertightness with dry water blocking elements
- Metalic lateral supporting parts
- Outer jacket: Black HD polyethylene
- External yellow markings
MAIN DIMENSIONAL & MECHANICAL FEATURES
| Structure | Cable Ø | Nominal Weight (from 12 to 48fo) | Breaking Streng |
Max. allowable Tension (N, @0,667%) |
High Voltage Test | Crush resistance | Min. static bending radius | ||
| Z1350 | 7 mm | 34 to 39 kg/km | 1350-2000 N | 1200 N | Affords 11kV and 15kV high voltages environments | 200 N/cm | 80 mm | ||
TEMPERATURES
| Temperatures | UND1344 |
| Transport & Storage | -40°C/+70°C |
| Installation | -5°C/+50°C |
| Operation | -40°C/+70°C |
COLOR CODE
| Nb fiber / tube | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Blue | Orange | Green | Red | grey | Yellow | Brown | Violet | Black | White | pink | Aqua | |
| Alternative colour code can be implemented on request | ||||||||||||
MARKING
- Printing type : Inkjet
- Standard marking : ULW - OH - fibre qty - OPTICAL FIBRE CABLE - ACOME - Year Week - xxxxx/ P/N + metric
- Custom marking on request
Range
| P/N (i) in G657 A1 | P/N (i) in G657 A2 | Fibre Count | Modularity | Nb of Compact Tubes® | Fibre Diameter | Cable Diameter | Construction range | Drum type (for standard length) | Standard delivery length (m) |
| H0148* | H0224* | 12fo | 12fo | 1 | 250µm | 7mm | Z1350 | C | 4000 |
| H0189* | H0227* | 24fo | 12fo | 2 | 250µm | 7mm | Z1350 | C | 4000 |
| H0149* | H0225* | 36fo | 12fo | 3 | 250µm | 7mm | Z1350 | C | 4000 |
| H0150* | H0226* | 48fo | 12fo | 4 | 250µm | 7mm | Z1350 | C | 4000 |
| H0485* | To define | 60fo | 12fo | 5 | 200µm | 7mm | Z1350 | C | 4000 |
| * an additional suffix defines color code and marking | |||||||||
Norms and standards
Fibres and Cables respectively in accordance with IEC/EN 60793 and IEC/EN 60794-1
Recommendations
STORAGE AND INSTALLATION
The cables are supplied with protective wrapping that must be maintained until the product has been fully used.
The rules for storage, transport, and cable laying are described in our ACOPTIC Guide.

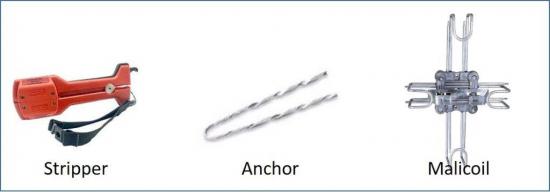

INSTALLATION TOOLS & ACCESSORIES
ACOME overhead cables are fully compatible with a set of standart accesories.
