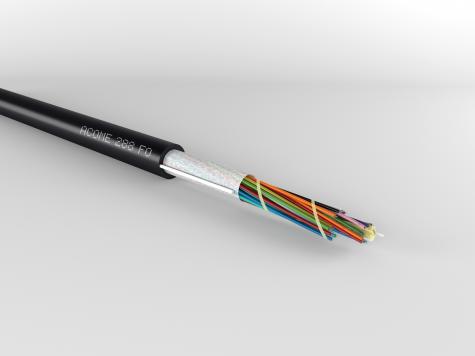

Modélisation UND1537

ACOPTIC UND1537

Lightened Aerial Optic Cables - Outdoor telecom access networks < 60m - From 12 to 288 Fibres

Benefits

  • Ligthened: avoids the refusal related to the load on the poles
  • ADSS cable widely adopted by major telecom operators
  • Combines compactness, lightness and robustness
  • Easy identification due to “AERIAL” marking on the outer sheath
  • Easy end terminations without tube kinking risks
  • Flexible : its technical design enables also installation in ducts and  gutters by blowing or pulling methods
  • Optional : ACOREX® anti-rodent protection available.

Applications

UND ranges are ACOME’s distribution solutions for FTTH networks.The UND1537 range is the aerial solution to link central office to any part of its FTTx network. The cables are suitable for telephone poles.The range of these cables can be up to 60m. The UND1537 are compatible with various clamps  available on the market (see page 2). Blowing and pulling in ducts is also appropriate thanks to its mechanical features.

General characteristics

schéma du câble

Compact-tube®: : 12 optical fibres (6 OF for modularity 6) under a strippable thermoplastic skin.

‚ Smooth strength members: Aramid yarn

ƒ Hard Strength members: 2 peripheral FRP

„ Watertightness: Dry water-blocking elements

n Outer sheath: Black high density polyethylene





UND1537 range description

Modularity

Capacity

Amount of

Compact-tube®

Part number G657A2

Part number G652D

Current

lengths

6

6 fibres

1

H0338A

-

4000

12 fibres

2

H0341A

-

4000

24 fibres

4

H0342A

-

4000

36 fibres

6

H0343A

-

4000

48 fibres

8

H0344A

-

4000

72 fibres

12

H0345A

-

4000

96 fibres

16

H0346A

-

4000

144 fibres

24

H0347A

-

4000

12

12 fibres

1

H0340A

-

4000

24 fibres

2

H0348A

-

4000

36 fibres

3

H0349A

-

4000

48 fibres

4

H0350A

-

4000

72 fibres

6

H0351A

-

4000

96 fibres

8

H0352A

-

4000

144 fibres

12

H0353A

-

4000

288 fibres

24

H0354A

-

4000

Norms and standards

Compliant IEC60793   IEC60794-1-21   IEC60794-1-22

Recommendations

Storage & installation
  • The cables are supplied with protective wrapping that must be maintained until the product has been fully used.
  • The rules for storage, transport, and cable laying are described in our ACOPTIC Guide.
