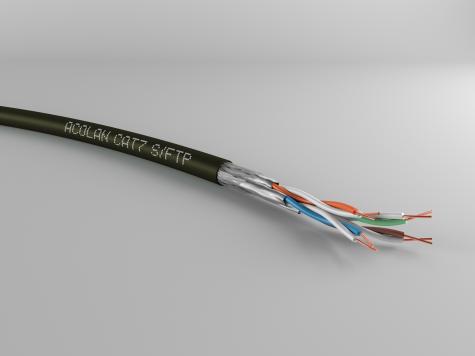

PHOTO PRODUIT ACOME R8600A

R8600A | ACOLAN COPPER

S/FTP Cat.7 1000 MHz 4P LSOH-FR - BLACK

Benefits

  • Indoor/outdoor use
  • 10 Gb/s
  • Compatible with direct attach plug RJ45

           Ideal for connecting terminals (cameras, ...)

Applications

  • 10 Gigabit High speed data transmission cables are designed for backbone distribution local computer networks.
  • Protected by a black UV resistant LSOH-FR sheath for outdoor use.
  • Maximum length cable recommended : 70 m.
  • These cables allow the use of the protocol supported by the F class for the 10 GBASE-T applications.
  • They are characterized of up to 1000 MHz.
  • They are compatibles with PoE & PoE+, UPoE & 4PPoE (PoE++) applications.

           See our White Paper on installation conditions on www.acome.com also available on demand

General characteristics

Characteristics_acome_acolan_copper

     1. Conductor

Solid annealed red copper wire, AWG 26

Foam skin Pe insulation Æ  ≤ 1.00 mm

      2. Cable element

Cable assembly in Twisted Pairs

      3. Pair screening

Pet/Alu foil around each pair

      4. Stranding

4 pairs screening assembly

      5. Screen

Tinned copper braid and drain wire AWG26 tinned
      6. External sheath LSOH-FR: Low Smoke « Zero » Halogen – Flame Retardant and UV resistant
GENERAL

Designation

ACOLAN

Ref.

Colour

Diameter

Weight

Superior calorific capacity

(PCS)

Max pulling tension

mm

Kg/km

MJ/km

KWh/m

N

1000 SF-S 4P LSOH-FR IN&OUT

R8600A

Black

5.90

38

365

0.101

55

MECHANICAL

            Characteristics

Values

Bending radius

Dynamic (installation)

≥ 45 mm

Static (installed)

≥ 25 mm

Temperature range

In service

- 40°C at + 75°C

At the installation

- 20°C at + 60°C

Transport and storage

- 40°C at + 75°C

Waterproofness   IP67
ELECTRICAL

Electrical characteristics at 20°C (68°F)

            Characteristics

Values

Complete conductor resistance



≤ 250 W / km

Resistance unbalance



≤ 2 %

Dielectric strength

Continuous current

1kV during1 minute = No breakdown

Insulation resistance

(500 V)

≥ 5000 MW . km

Capacitance unbalance

Real-ground

≤ 1600 pF / km

Characteristic impedance

at 100 MHz

100 ±  5 W

Velocity

nominal

78 %

Coupling attenuation



≥ 80 dB

TYPE 1b

Transfer impedance At 1 MHz ≤ 10 mW / m GRADE 1
At 10 MHz ≤ 10 mW / m
At 30 MHz ≤ 20 mW / m
At 100 MHz ≤ 30 mW / m

Segregation classification acc.to En 50174.2



‘’d’’

Transmission

Transmission characteristics at 20° C

Frequency

(MHz)



4

10

20

62.5

100

250

300

600

1000**

Attenuation

(dB/100m)

Typical value

3.4

5.7

8.2

14.5

18.5

29.6

32.8

47.6

60

Imposition for 70m*

3.9

6.2

8.7

15.6

20

32.6

35.9

52.6

-

Next

(dB)

Typical value

90

90

90

90

90

88

87

82

78

Imposition for 70m*

78

78

78

75

72

66

65

61

-

PS Next

(dB)

Typical value

87

87

87

87

87

85

84

79

75

Imposition for 70m*

75

75

75

72

69

63

62

58

-

ELFEXT

(dB/100 m)

Typical value

84

80

74

64

60

52

50

44

38

Imposition for 70m*

78

74

68

59

55

48

46

41

-

PS ELFEXT

(dB/100 m)

Typical value

81

77

71

61

57

49

47

41

35

Imposition for 70m*

75

71

65

56

52

45

43

38



Return Loss

(dB)

Typical value

26

28

28

28

24

22

21

19

18

Imposition for 70m*

23

25

25

21.5

20.1

17.3

17.3

17.3

-

* Category 7 according IEC 61156-5

** For information only

Range

DELIVERY LENGTH

Type

References

Individual

Expedition

Type

Weight

EAN code

Quantity

Weight

EAN code

4P LSOH-FR

R8600A – T500

Drum KC of 500 m

21 kg

3700223649303

18 drums

391 kg

3700223649297

R8600A - RB300 Box of 300 m 14 kg 3700223647705 18 boxes 264 kg 3700223647699

Norms and standards

GENERAL

 POE READY logo ce



Applications
IEEE 802.3 :10Base-T; 100Base-TX;1000Base-T; 2,5GBase-T ;

5GBase-T ; 10GBase –T

IEEE 802.3 af (PoE) / 802.3 at (PoE+) / 802.3 bt (4PPoE 90W)

IEEE 802.5 / FDDI / ATM / RNIS

Cables
IEC 61156-5 ed.2 / EN 50288-4-1 *

Cabling system standard
ISO/IEC 11801 2nd ed. / EN 50173-1 / EN 50173-5

Cabling system installation standards
EN 50174

Directive / Regulation
RoHS 2011/65/UE
REACH 1907/2006/EC

EUROCLASS

FIRE BEHAVIOUR

Europe

Type

Euroclass

Standards

Declaration of performance

4P

EDca-s2,d2,a1ca

IEC 60332-1, EN 50399, IEC 60754-2

22SFTP024

Outside Europe

No flame propagation

IEC 60332-1 / EN 60332-1

Low smoke opacity

IEC 61034-2 / EN 61034-2

Low gas corrosivity

IEC 60754-2 / EN 60754-2

Low toxicity IEC 60754-1 / EN 60754-1

Recommendations

Field Plug RJ45 compatible

Most RJ45 field plugs are compatible with the cable including :
R&M FM45 C6A
Metz connect C6A RJ45 field plug pro – Réf 130E405032 - E
