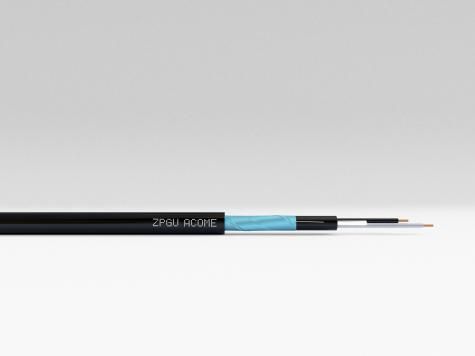

Ferroviaire_Intercités_Câbles pour postes aiguillage_ZPGU

ZPGU

Local cables for signalling
Intercity railways - Signalling - Local cables

Benefits

  • Protected against electrostatic interference

Applications

  • Indoor equipment for switchgear substations or short length connections to the outside
  • Shielded signal cable for local circuits

General characteristics

schéma coupe ZPGU



  1. Red copper solid core – Class 1
  2. Insulation: coloured polyethylene
  3. Twisted pair wiring (except 2 p. : 1 4-wire star)
  4. Polyethylene water-blocking internal sheath
  5. Shielding aluminium/polyester tape + copper wire for electrical continuity
  6. Outer jacket black lead-free PVC + marking + metric

Mechanical
  • Operating temperature: 70°C
  • Resistant to mineral oils, acids and bases
  • Static bending radius: 8 x D, dynamic: 16 x D
  • Installation in cable ducts or cable trays
Electrical
  • Linear resistance: 18.1Ω/km
  • Operating voltage: 750V
  • Capacitance: < 55nF/km

Range



Composition

Cross-sectional area
of core
(mm2)

Composition
of core
Nb x Ømm

Diameter
of sheath
(mm)

Net weight
(kg/km)
PVC/ZH

Reel format
Length (m)

U3758

1 p.

1

1 x 1,12

9,8

95

A 500

U3759

2 p.

1

1 x 1,12

10,6

130

A 500

U3760

3 p.

1

1 x 1,12

13,2

179

B 500

U3761

7 p.

1

1 x 1,12

18,3

301

C 500

U3762

14 p.

1

1 x 1,12

21,3

532

E 500



  • SPGU : associated multi-conductor range with 1mm² cross-section - Other formats available on request

Norms and standards

General standards
  • SNCF CT 445 specification
  • SNCF approved
Fire behavior
  • Fire resistance NFC 32070.2.1 (flame retardant) ex-IEC 60332-1
