Product

Série 98 - 4/10 et 6/10 Série 99 - 8/10

4/10, 6/10 and 8/10 overhead distribution cables - 98/99 series

Benefits

  • ACOME's 98 and 99 series overhead cables have been used for decades, with tens of millions of kilometres of wire installed, in fixed Telecom networks in France, Africa and the Middle East.

  • From the outset, these cables have satisfied the highest quality transmission requirements. They still provide very high speed transmission for ADSL, ADSL2+ and VDSL protocols of Internet Service Providers (ISPs).

Applications

  • The 98 and 99 series overhead network cables have been designed for urban and rural telephone distribution networks, from the sub-distributor to the connection point, all the way to the end user.
  • Their high-strength steel strands make them suitable for installation between Telecom poles in any climate.
  • These 4/10, 6/10 and 8/10 cables have fibre counts of 4 to 112 pairs depending on the copper conductor cross-section.

General characteristics

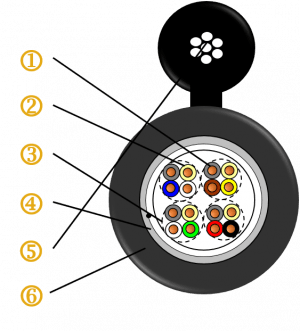

Coupe descriptif Série 98 / 99

  1. Conductor: Red copper wire
  2. Insulation: Solid polyethylene
  3. Assembly: 4-wire stars
  4. Shielding: Tinned copper continuity wire / copolymer aluminium tape (Aluminium PE)
  5. Carrier: Galvanised steel stran
  6. Outer jacket: Black MDL polyethylene
General
Item code Range Assembly Number of pairs Diameter of the conductor Marking Colour code
L0040E 98 4-wire stars 20 p. 4/10 ACOME Std
L0041E 98 4-wire stars 14 p. 4/10 ACOME Std
L0042E 98 4-wire stars 28 p. 4/10 ACOME Std
L0043E 98 4-wire stars 56 p. 4/10 ACOME Std
L0127E 98 4-wire stars 112 p. 4/10 ACOME Std
L0044E 98 4-wire stars 20 p. 6/10 ACOME Std
L0045E 98 4-wire stars 14 p. 6/10 ACOME Std
L0046E 98 4-wire stars 28 p. 6/10 ACOME Std
L0047E 98 4-wire stars 56 p. 6/10 ACOME Std
L0048E 98 4-wire stars 112 p. 6/10 ACOME Std
L0049E 99 4-wire stars 16 p. 8/10 ACOME Std
L0050E 99 4-wire stars 20 p. 8/10 ACOME Std
L0051E 99 4-wire stars 14 p. 8/10 ACOME Std
L0052E 99 4-wire stars 28 p. 8/10 ACOME Std
L0053E 99 4-wire stars 56 p. 8/10 ACOME Std
Color code

Série 98 :

code couleurs série 98

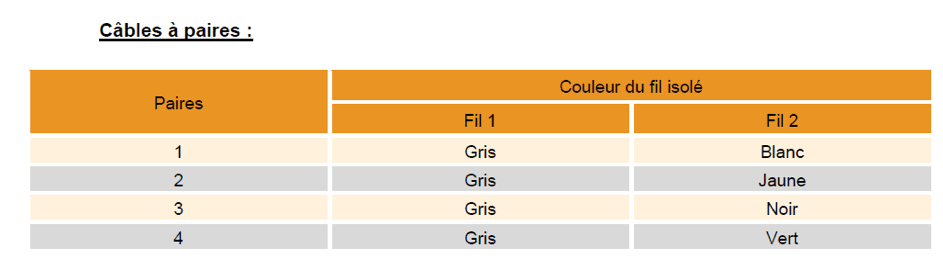

Série 99 :

code couleurs série 99code couleurs série 99



Norms and standards

General

UTE C 93-526 & UTE C 93 - 527 -3; Compliant with the European ROHS 2002/95/EC directive

Recommendations

Storage and installation

The cables are supplied with protective wrapping that must be maintained until the product has been fully used.
