Product
General characteristics
|

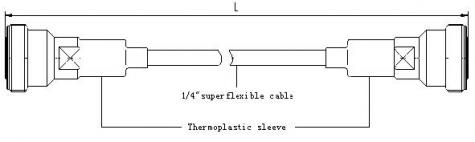

Cable: |
ACOME 50-1/4SF PE cable |
|
Connector: |
7/16 Din female |
|
Assembly: |
Inner and outer contact 100% soldered and with thermal shrink tube |
MECHANICAL & ENVIRONMENTAL
|
Material and Finish of Connector Body: |
Copper alloy - plated brass |
|
Material and Finish of Coupling Nut: |
Nickel - plated brass |
|
Material and Finish of Inner Conductor: |
Silver - plated bronze |
|
Coupling Waterproof: |
Silicone Rubber O-ring |
|
Coupling Torque: |
30 N.m Max. |
|
Minimum Bending Radius: |
25 mm |
ENVIRONMENTAL
|
Operating Temperature Range: |
-55°C < θ < + 70°C |
|
Waterproof Index: |
IP68 (1m /24 h) |
|
RoHS Compliance: |
Yes |
|
Test Methods: |
IEC 61169, IEC 62037, IEC 60529 |
ELECTRICAL
| Impedance: | 50 ± 1Ω | |
| Operating Frequency Range: | DC ~ 3GHz | |
| RMS Power (40 ℃ - 2 GHz): | 0.35 KW | |
| Velocity: | 83% | |
| Passive Intermodulation Measured In Swept Frequency Mode, With 2× 20W Carries: | IM3 at 900MHz | ≤ -160 dBc |
| IM3 at 1800MHz | ≤ -160 dBc | |
| IM7 at 2100MHz | ≤ -160 dBc | |
Range
| Length (m) | Product number | Weight (g) | Frequency 0/1000MHz | Frequency 1000/2200MHz | Frequency 2200/3000MHz | |||
| RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | |||
| 1 | C0939E | 215 | -32 | 0.30 | -30 | 0.46 | -26 | 0.53 |
| 1.5 | C0940E | 255 | -32 | 0.40 | -30 | 0.61 | -26 | 0.71 |
| 2 | C0938E | 295 | -32 | 0.53 | -30 | 0.76 | -26 | 0.89 |
| 2.5 | C0941E | 330 | -32 | 0.60 | -30 | 0.91 | -26 | 1.10 |
| 3 | C0937E | 365 | -32 | 0.70 | -30 | 1.10 | -26 | 1.26 |
| 3.5 | C1008E | 400 | -32 | 0.79 | -30 | 1.22 | -26 | 1.43 |
| 4 | C1009E | 440 | -32 | 0.90 | -30 | 1.36 | -26 | 1.61 |
| 5 | C1010E | 510 | -32 | 1.09 | -30 | 1.66 | -26 | 1.96 |
