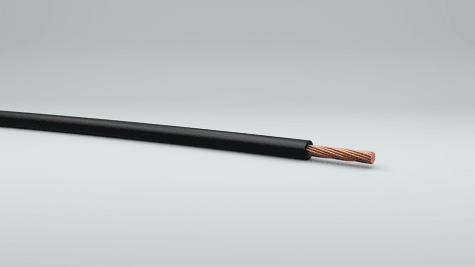

T120 wires JASO AESSX
E-Beam crosslinked XLPE thin insulated wires for temperature up to 120°C.
From 0.30 to 2.00 mm²
From 0.30 to 2.00 mm²
Benefits
- Extended life time up to 10 000 h at 120°C
- Thin copper strands allow high flexibility
- Thin wall for weight and space reduction
General characteristics
Conductor
- Cu ETP1 according to DIN EN13602
Insulation
- Crosslinked low halogenated PE heat resistant
|
Conductor Wire |
||||||||
|
Cross section |
Number of strands |
Max. diameter of strands |
Max. diameter |
Max. conductor resistance |
Insulation wall thickness |
Min. external diameter |
Max. external diameter |
Standard delivery length |
|
mm² |
|
mm |
mm |
Ω/km@ 20°C |
mm |
mm |
mm |
m |
|
AESSX-f |
||||||||
|
0.30 |
19 |
0.16 |
0.80 |
48.8 |
0.24 |
1.30 |
1.50 |
13 000 |
|
0.50 |
19 |
0.19 |
1.00 |
34.6 |
0.24 |
1.50 |
1.70 |
10 500 |
|
0.75 |
19 |
0.23 |
1.20 |
23.6 |
0.24 |
1.70 |
1.90 |
8 500 |
|
1.25 |
37 |
0.21 |
1.50 |
14.6 |
0.24 |
2.00 |
2.20 |
6 000 |
|
2.00 |
37 |
0.26 |
1.80 |
9.5 |
0.32 |
2.50 |
2.70 |
4 000 |
Norms and standards
General standards
- According to JASO D611 – D618
Related products

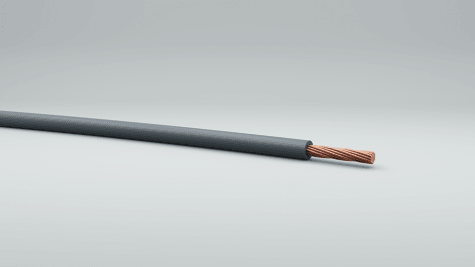

E-Beam crosslinked PVC thin insulated wires for temperature up to 100°C
