Engine cockpit harness wires Skinny wires Cusn 0.3

Skinny wires Cusn 0.3

Small cross section wires for weight and space saving
0,13 and 0,35 mm²

Benefits

  • Space and weight reduction
  • Shape memory cancelation
  • Copper alloys for high mechanical resistance

General characteristics

Conductor

  • Cu ETP according to DIN EN13602

Insulation

  • Lead-free PVC class T105 & T125
  • XLPE class T125


Conductor                                                                              Wire

Cross section

Number of strands

Max. diameter of strands

Max. diameter

Max. conductor resistance

Insulation wall thickness

Min. external diameter

Max. external diameter

Standard delivery length

mm²



mm

mm

Ω/km@ 20°C

mm

mm

mm

m

T105  PVC  -40°C +105°C
0.13 7 0.158 0.47 170 0.20 0.95 1.05 18 000
T125  PVC  -40°c +125°C
0.13 7 0.158 0.47 170 0.20 0.95 1.05 18 000

T125 XLPE -40°C  +125°C
0.13 7 0.158 0.47 170 0.20 0.95 1.05 18 000
0.35 7 0.27 0.80 70 0.30 1.40 1.60 15 000

Norms and standards

General standards
  • According to ISO 6722-1
  • LV112-4
  • Ford ES-BR33-1A348-AA
  • GM GMW15626
  • PSA STN B251110-B

You want more information ?

Related products

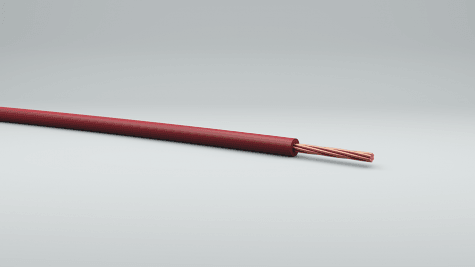

Engine cockpit harness wires T125 wires XLPE
T125 wires XLPE
E-beam crosslinked PE thin insulated wires for passenger and engine compartment cabling.
0,35 - 8,00 mm²

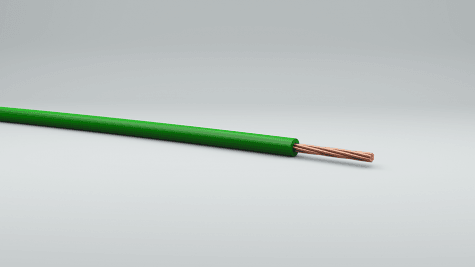

Engine cockpit harness wires Skinny wires hard copper
