Product
C6005E-L400
HYPERCELL

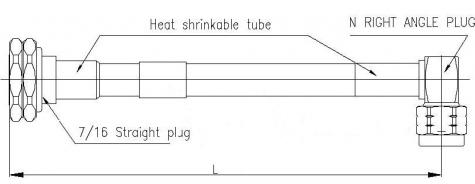

Jumper 3/8SF PE 7/16 Din Male – N Male Elbow
General characteristics
|
Cable: |
ACOME 50-3/8SF PE cable |
|
Connector: |
7/16 Din male / N male elbowr |
|
Assembly: |
Inner and outer contact 100% soldered and with thermal shrink tube |
MECHANICAL & ENVIRONMENTAL
| Material and Finish of Connector Body: | Copper alloy - plated brass | ||
| Material and Finish of Coupling Nut: | Nickel - plated brass | ||
| Material and Finish of Inner Conductor: | Silver - plated bronze | ||
| Coupling Waterproof: | Silicone Rubber O-ring | ||
| Coupling Torque: | N interface | 2.5 N.m Max. | |
| Din interface | 30 N.m Max. | ||
| Minimum Bending Radius: | 25 mm | ||
ENVIRONMENTAL
|
Operating Temperature Range: |
-55°C < θ < + 70°C |
|
Waterproof Index: |
IP68 (1m /24 h) |
|
RoHS Compliance: |
Yes |
|
Test Methods: |
IEC 61169, IEC 60529 |
ELECTRICAL
| Impedance: | 50 ± 1Ω | |
| Operating Frequency Range: | DC ~ 3GHz | |
| RMS Power (40 ℃ - 2 GHz): | 0.51 KW | |
| Velocity: | 83% | |
|
Passive Intermodulation Measured In Swept Frequency Mode, With 2X20W Carries: |
IM3 at 900MHz | ≤ -145 dBc |
| IM3 at 1800MHz | ≤ -145 dBc | |
| IM7 at 2100MHz | ≤ -145 dBc | |
Range
| Length (m) | Product number | Weight (g) | Frequency 0/1000MHz | Frequency 1000/2200MHz | Frequency 2200/3000MHz | |||
| RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | RL (dB) | ATT (dB) | |||
| 2 | C6005E-L200 | 420 | -28 | 0.39 | -26 | 0.59 | -24 | 0.70 |
| 4 | C6005E-L400 | 675 | -28 | 0.67 | -26 | 1.01 | -24 | 1.20 |
| 5 | C6005E-500 | 800 | -28 | 0.81 | -26 | 1.22 | -24 | 1.45 |
