C1484E | HYPERCELL

Reference : C1484E
Jumper 1/2F LSOH N Male – N Male

General characteristics

Cable:

ACOME 50-1/2F LSOH cable

Connector:

N male

Assembly:

Inner and outer contact 100% soldered and with thermal shrink tube



MECHANICAL & ENVIRONMENTAL

Material and Finish of Connector Body:

Copper alloy - plated brass

Material and Finish of Coupling Nut:

Nickel - plated brass

Material and Finish of Inner Conductor:

Silver - plated bronze

Coupling Waterproof:

Silicone Rubber O-ring

Coupling Torque:

2.5 N.m Max.

Minimum Bending Radius:

70 mm



ENVIRONMENTAL

Operating Temperature Range:

-40°C < θ < + 70°C

Waterproof Index:

IP68 (1m /24 h)

RoHS Compliance:

Yes

Test Methods:

IEC 61169, IEC 60529



ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Range: DC ~ 3GHz
RMS Power (40 ℃ - 2 GHz): 0.81 KW
Velocity: 87%

Passive Intermodulation Measured In Swept

Frequency Mode, With 2X20W Carries:

IM3 at 900MHz ≤ -160 dBc
IM3 at 1800MHz ≤ -160 dBc
IM7 at 2100MHz ≤ -160 dBc



Range

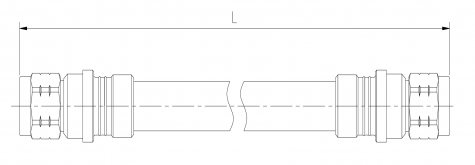

Length (m) Product number Weight (g) Frequency 0/1000MHz Frequency 1000/2200MHz Frequency 2200/3000MHz
RL (dB) ATT (dB) RL (dB) ATT (dB) RL (dB) ATT (dB)
1 C1484E 395 -32 0.19 -30 0.29 -26 0.34
1.5 C1485E 522 -32 0.23 -30 0.35 -26 0.41
2 C0978E 650 -32 0.27 -30 0.40 -26 0.48
2.5 C1486E 780 -32 0.30 -30 0.46 -26 0.54
3 C0979E 910 -32 0.34 -30 0.52 -26 0.61
4 C1487E 1165 -32 0.41 -30 0.63 -26 0.74
5 C1488E 1420 -32 0.48 -30 0.73 -26 0.88
8 C1489E 2180 -30 0.70 -28 1.08 -24 1.28
50.1 C1495E 12800 -26 3.77 -24 5.79 -24 6.90
