C1589E-L70 | HYPERCELL

Reference : C1589E-L70

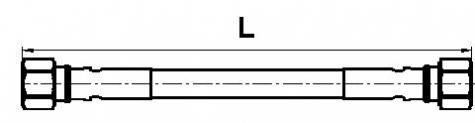

Jumper 1/2SF PE 4.3-10 Male – 4.3-10 Male

General characteristics

Cable:

ACOME 50-1/2SF PE cable

Connector:

Screw type 4.3-10 male

Assembly:

Inner and outer contact 100% soldered and with molding



MECHANICAL & ENVIRONMENTAL

Material and Finish of Connector Body:

Copper alloy - plated brass

Material and Finish of Coupling Nut:

Nickel - plated brass

Material and Finish of Inner Conductor:

Silver - plated bronze

Coupling Waterproof:

Silicone Rubber O-ring

Coupling Torque:

8 N.m Max.

Minimum Bending Radius:

25 mm



ENVIRONMENTAL

Operating Temperature Range:

-55°C < θ < + 70°C

Waterproof Index:

IP68 (1m /24 h)

RoHS Compliance:

Yes

Test Methods:

IEC 61169,IEC 62037, IEC 60529



ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Range: DC ~ 3GHz
RMS Power (40 ℃ - 2 GHz): 0.5 KW
Velocity: 83%

Passive Intermodulation Measured In Swept

Frequency Mode, With 2X20W Carries:

IM3 at 900MHz ≤ -161 dBc
IM3 at 1800MHz ≤ -161 dBc
IM7 at 2100MHz ≤ -161 dBc



Range

Length (m) Product number Weight (g) Frequency 0/1000MHz Frequency 1000/2200MHz Frequency 2200/3000MHz
RL (dB) ATT (dB) RL (dB) ATT (dB) RL (dB) ATT (dB)
0.5 C1589E-L50 155 -32 0.26 -30 0.29 -26 0.31
0.7 C1589E-L70 185 -32 0.28 -30 0.32 -26 0.36
1 C1589E-L100 235 -32 0.31 -30 0.37 -26 0.40
1.5 C1589E-L150 325 -32 0.36 -30 0.45 -26 0.50
2 C1589E-L200 410 -32 0.42 -30 0.54 -26 0.60
2.5 C1589E-L250 495 -32 0.47 -30 0.62 -26 0.70
3 C1589E-L300 580 -32 0.53 -30 0.71 -26 0.81
4 C1589E-L400 750 -32 0.64 -30 0.87 -26 1.05
5 C1589E-L500 920 -32 0.75 -30 1.05 -26 1.20
10 C1589E-L1000 1760 -30 1.30 -28 1.90 -24 2.30
