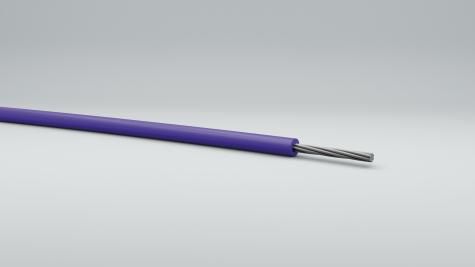

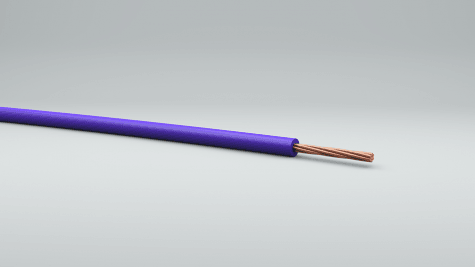

Conductor
Insulation
Conductor Wire |
||||||||
Cross section |
Number of strands |
Max. diameter of strands |
Max. diameter |
Max. conductor resistance |
Insulation wall thickness |
Min. external diameter |
Max. external diameter |
Standard delivery length |
mm² |
|
mm |
mm |
Ω/km@ 20°C |
mm |
mm |
mm |
m |
Structure A (symmetrical) |
||||||||
0.35 | 7 | 0.25 | 0.78 | 55.50 | 0.20 | 1.20 | 1.30 | 15 000 |
0.50 | 19 | 0.18 | 0.90 | 38.20 | 0.22 | 1.40 | 1.60 | 11 000 |
0.75 | 19 | 0.23 | 1.13 | 25.4 | 0.24 | 1.70 | 1.90 |
8 000 |
Structure B (asymmetrical) |
||||||||
0.50 | 16 | 0.20 | 0.90 | 38.20 | 0.22 | 1.40 | 1.60 | 11 000 |
0.75 | 24 | 0.20 | 1.13 | 25.40 | 0.24 | 1.70 | 1.90 | 8 000 |
1.00 | 32 | 0.20 | 1.30 | 19.10 | 0.24 | 1.90 | 2.10 | 7 000 |
1.50 | 30 | 0.25 | 1.50 | 13.00 | 0.24 | 2.20 | 2.40 | 5 000 |
