C2250E-L300
HYPERCELL

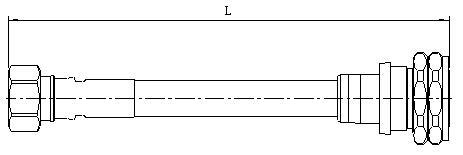

Jumper 1/2SF PE 4.3-10 Male – 7/16 Din Male

General characteristics

Cable:

ACOME 50-1/2SF PE cable

Connector:

Screw Type 4.3-10 Male /7/16 Din Male

Assembly:

Inner and outer contact 100% soldered and with molding



MECHANICAL & ENVIRONMENTAL

Material and Finish of Connector Body:

Copper alloy - plated brass

Material and Finish of Coupling Nut:

Nickel - plated brass

Material and Finish of Inner Conductor:

Silver - plated bronze

Coupling Waterproof:

Silicone Rubber O-ring

Coupling Torque:

Din interface

30 N.m Max.
4.3-10 interface 8 N.m Max.

Minimum Bending Radius:

25 mm



ENVIRONMENTAL

Operating Temperature Range:

-55°C < θ < + 70°C

Waterproof Index:

IP68 (1m /24 h)

RoHS Compliance:

Yes

Test Methods:

IEC 61169,IEC 62037, IEC 60529



ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Range: DC ~ 3GHz
RMS Power (40 ℃ - 2 GHz): 0.50 KW
Velocity: 83%

Passive Intermodulation Measured In Swept

Frequency Mode, With 2X20W Carries:

IM3 at 900MHz ≤ -161 dBc
IM3 at 1800MHz ≤ -161 dBc
IM7 at 2100MHz ≤ -161 dBc



Range

Length (m) Product number Weight (g) Frequency 0/1000MHz Frequency 1000/2200MHz Frequency 2200/3000MHz
RL (dB) ATT (dB) RL (dB) ATT (dB) RL (dB) ATT (dB)
1 C2250E-L100 300 -32 0.31 -30 0.37 -26 0.41
1.5 C2250E-L150 385 -32 0.36 -30 0.45 -26 0.51
2 C2250E-L200 470 -32 0.42 -30 0.54 -26 0.60
3 C2250E-L300 640 -32 0.53 -30 0.71 -26 0.81
4 C2250E-L400 810 -32 0.64 -30 0.87 -26 1.05
5 C2250E-L500 970 -32 0.75 30 1.05 -26 1.20
6 C2250E-L600 1140 -32 0.86 -30 1.21 -26 1.42
7 C2250E-L700 1310 -30 0.97 -28 1.38 -24 1.62
8 C2250E-L800 1480 -30 1.08 -28 1.55 -24 1.82
10 C2250E-L1000 1820 -30 1.29 -28 1.88 -24 2.22
