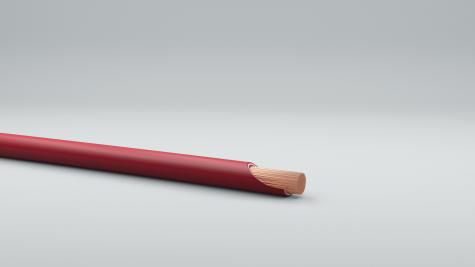

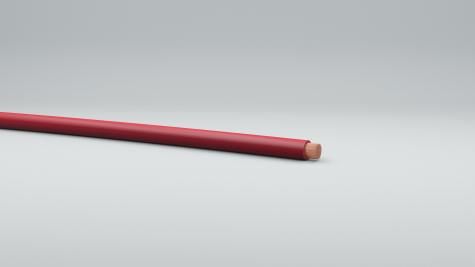

Low voltage power cable_Copper conductor_T125 Access

T125 Access - 10 à 95 mm²

Low voltage power cable
XLPE single layer insulated for environment up to 125 ° C

Benefits

  • PE e-beam crosslinked
  • Flexible cable
  • Thermomechanical behaviour: resistance to short circuits (250°C during one hour)

General characteristics

Conductor:

  • Cu ETP1 according to DIN EN13602

Insulation

  • Material: Cross-linked XLPO

Other

  • Operating voltage : 60V AC / 90V DC - Low voltage cables
  • Bending radius: 3D (static)


Thin wall definition

Cross
section
mm²

Strands
number

Strand
diameter

mm

Conductor
diameter

mm

Linear
resistance
Ω/km@ 20°C

Insulation
wall
thickness

(mm)

Min.
external diameter

mm

Max.
external diameter

mm

Standard
delivery length

(m touret CXPA)

10

320

0.20

4.00

1.820

0.48

5.40

5.8

1 300

16

504

0.20

5.00

1.160

0.52

6.50

7.0

1 000

25

784

0.20

6.40

0.743

0.52

8.20

8.7

650

35

1 120

0.20

7.50

0.527

0.64

9.80

10.4

400

50

1 600

0.20

9.50

0.368

0.71

11.8

12.2

250

70

2 272

0.20

11.30

0.259

0.80

14.0

14.4

150

95

2 960

0.20

12.60

0.196

0.90

16.2

16.7

100

Additional CSA could be added if requested (202/302/402/602).

Thick wall definition

35

1 120

0.20

7.50

0.527

1.04

9.6

11.6

400

50

1 600

0.20

9.50

0.368

1.20

11.5

13.5

250

70

2 272

0.20

11.30

0.259

1.20

13.5

15.5

150

95

2 960

0.20

12.60

0.196

1.28

16.0

18.0

100

Colours
  • Red/ Black – additional colours upon request

Norms and standards

General standards
  • ISO 6722-1
