C0327E

C0327E | HYPERCELL

Reference : C0327E

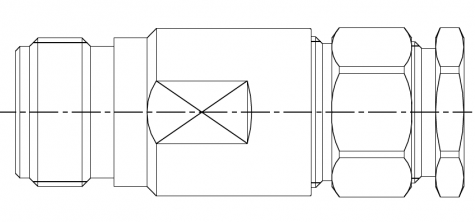

HPL N female connector

General characteristics

Inner Conductor:

Silver - plated bronze

Inner Contact:

Silver - plated brass

Dielectric:

PTFE

Body:

Copper alloy - plated brass

Clamping and Coupling Nut:

Nickel - plated brass

Clamping Nut Waterproof:

Silicone O-ring



MECHANICAL & ENVIRONMENTAL

Interface Durability:

500 cycles

Temperature:

Operating

-40°C / +85°C
Installation -25°C / +55°C
Storage -50°C / +85°C

Weight:

55 g

Waterproof Index:

IP67

Axial Retention Force: 400N
RoHS Compliance: Yes



ELECTRICAL
Impedance: 50 ± 1Ω
Operating Frequency Band: DC ~ 4GHz
Return Loss: DC~1GHz ≤ -26.5 dB
1~2GHz ≤ -21 dB
2~4GHz ≤ -18 dB
Voltage Test (at sea level): 2000 V eff / 50 Hz
Operating Voltage (at sea level): 900 V eff / 50 Hz
Insulation Resistance: ≥5000 MΩ
Contact Resistance: Inner contact: ≤ 1.5 mΩ
 Outer contact: ≤ 1.0 mΩ



Range

Compatibility with ACOME HPL 50 -3/8XF

M5437, M5435, M5362, M5333, M5452

Test Methods: IEC 61169-16, IEC 62037-3, IEC 60529

Recommendations

INSTALLATION

ANM - C0327E
