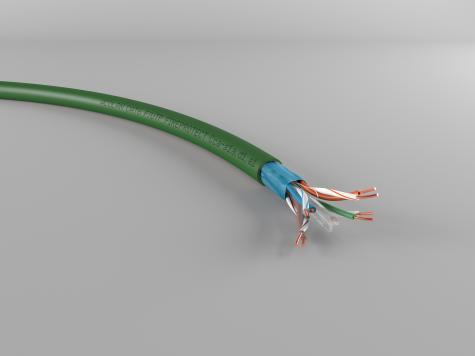

PHOTO PRODUIT ACOME R7597A-T500

ACOLAN® COPPER FIREPROTECT

Reference : R7597A-T500
F/UTP Cat.6 450 MHz 4P LSOH-FR DRUM 500m - GREEN

Benefits

  • Improved Fire performance Euroclass Cca
  • Small diameter

Applications

  • 2,5 gigabits high speed data transmission cables are designed for horizontal cable distribution local computer networks.
  • These cables allow the use of the protocol supported by the E class applications.
  • They are characterized of up to 450 MHz.
  • They are compatibles with PoE, PoE+ & UPoE applications.

General characteristics

SCHEMA COUPE 127

  1. Conductor

Solid annealed red copper wire  AWG 24

Foam skin Pe insulation Æ ≤ 1.10 mm



  1. Cable element

Cable assembly in Twisted Pairs

  1. Separator

Symetrical cross separator

  1. Cable assembly

4 pairs assembly with overall polyester tape

  1. Screen

Pet/Alu foil (Alu side inwards) and tinned drain wire AWG26

  1. Protection

Polyester tape

  1. External sheath

LSOH-FR: Low Smoke « Zero » Halogen - Flame Retardant

GENERAL

Designation

ACOLAN FIREPROTECT

Ref.

Colour

Diameter

Weight

Superior calorific capacity (PCS))

Max pulling tension

mm

Kg/km

MJ/km

KWh/m

N

 450 FU 4P LSOH-FR

R7597A

Vert (RAL 6024)

6.30

42

531

0.147

80

MECHANICAL

            Characteristics

Values

Bending radius

Dynamic (installation)

≥ 50 mm

Static (installed)

≥ 25 mm

Temperature range

In service

- 20°C at + 60°C

At the installation

0°C at + 50°C

Transport and storage

0°C at + 50°C



ELECTRICAL

Characteristics

Values

Complete conductor resistance



≤ 190 Ω / km

Resistance unbalance



≤ 2 %

Dielectric strength

Continuous current

1kV during1 minute = No breakdown

Insulation resistance

(500 V)

≥ 5000 MΩ . km

Capacitance unbalance

Real-ground

≤ 1600 pF / km

Characteristic impedance

à 100 MHz

100 ±  5 Ω

Velocity

nominal

78 %

Coupling attenuation



≥ 55 dB

TYPE 2

Transfer impedance

At     1 MHz

≤ 40 mΩ / m

GRADE 2

At   10 MHz

≤ 40 mΩ / m

At   30 MHz

≤ 50 mΩ / m

At 100 MHz

≤ 200 mΩ / m

Segregation classification acc. EN 50174-2



“c”

Norms and standards

GENERAL

logo reach     logo poe    logo ce

450 Mhz

Applications
 IEEE 802.3 :10Base-T; 100Base-TX;1000Base-T; 2,5GBase-T   IEEE 802.5 /  FDDI / ATM / RNIS

Cables
 IEC 61156-5 ed.2 /  EN 50288-5-1

Cabling system standard

ISO 11801 2nd ed. / EN 50173-1 / TIA-568.2-D

Cabling system installation standard
 EN 50174

Directive / Regulation
 RoHS 2011/65/UE
 REACH 1907/2006/EC

EUROCLASS

EUROCLASSE CCA S1A D1 A1



FIRE BEHAVIOUR

Europe

Type

Euroclass

Standards

Declaration of performance

4P

Cca-s1a,d1,a1

IEC 60332-1, EN 50399,

 IEC 60754-2

18FUTP012

Zone de Texte: www.acome.fr

Outside Europe

No flame propagation

IEC 60332-1 / EN 60332-1

Low smoke opacity

IEC 61034-2 / EN 61034-2

Low gas corrosivity

IEC 60754-2 / EN 60754-2

Low toxicity

IEC 60754-1 / EN 60754-1



Recommendations

DELIVERY LENGTH

Type

References

Individual

Expedition

Type

Weight

EAN code

Quantity

Weight

EAN code

4P LSOH-FR

R7597A-T500

KC drum of 500 m

23 kg

3700223635283

18 drums

428 kg

3700223635290
