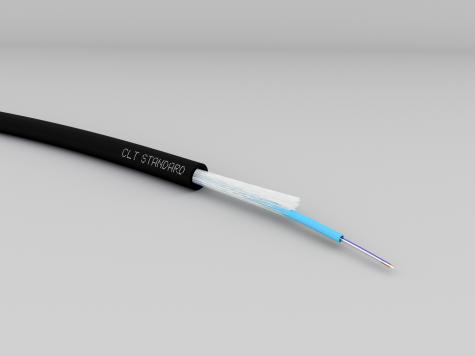

photo produit ACOME B1040A

B1040A | "ACOLAN OPTICAL - CLT STANDARD PE "

Reference : B1040A
12xOM2 LOOSE OUTDOOR PE STANDARD DIELECTRICAL - BLUE

Benefits

  • Flexible inner Tube
  • Cable with ripcord
  • Optimal design to facilitate preparation and access to fibers





Applications

  • High-speed data transmission cables are designed for all applications (campus, backbone, horizontal cables)and available for all environments (Industrial, Residential and Office Buildings).
  • They can be use Outdoor



General characteristics

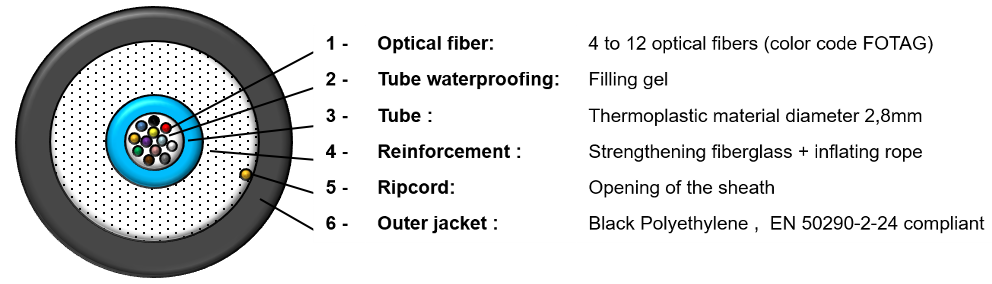

COUPE



ACOME Protection Index against rodents IPA:  ✭✩✩✩✩ = Low Protection

Marking of outer jacket: ACOLAN CLT STD PE - fiber count & type - product reference + DD/MM/YY hh:mm + metric

GENERAL

Characteristics

Value

Z1321A

4 to 12FO

Temperature range

Transport and storage

- 40°C at + 70°C

At the installation

-5°C at + 50°C

In service

-20°C at + 60°C

Maximum pulling force (N)

2000

Crush resistance (N/10 cm)

2000

Minimum bending radius (mm)

10xD

Standard packaging

2100m drums

Nominal sheath thickness (mm)

0,8

Nominal diameter (mm)

6

Nominal weight (kg/km)

31

Wrapping: cables are supplied with a protective wrap which must be maintained until full use of the product.



Code couleur FOTAG (fibres & tubes)

Bleu

Orange

Vert

Marron

Gris

Blanc

Rouge

Noir

Jaune

Violet

Rose

Turquoise







Range

Cable Content Multimode 50/125 OM2 ACMM50  Multimode 50/125 OM3 ACMM50  Multimode 50/125 OM4 ACMM50  Monomode  9/125* OS2 ACSM2-D METRO
4 fibres B1037A B1046A B1055A B1064A
6 fibres B1038A B1047A B1056A B1065A
8 fibres B1039A B1048A B1057A B1066A
12 fibres B1040A B1049A B1058A B1067A

*9/125 : fibres UIT-T G.652.D

Norms and standards

GENERAL

Cable de franceLogo reachlogo ce

Cable and fibers : EN 60793 / EN 60794-1
Wiring systems : EN 50173-1 / ISO 11801
Applications : IEEE 802.3 10M to 10Gbit  / IEEE 802.5 Token ring  ANSI X3T9-5 (FDDI) ATM (155, 622, …)
