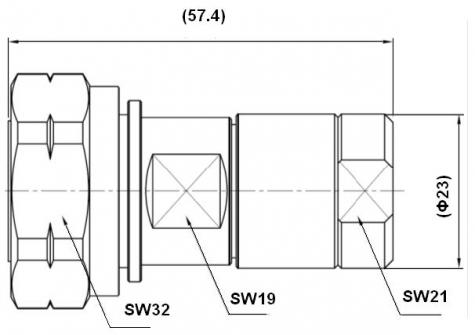

PHOTO PRODUIT ACOME C0053X

C0053X | HYPERCELL

Reference : C0053X
HPL 7/16 Din male connector

General characteristics

Inner Conductor:

Silver - plated bronze

Dielectric:

PTFE

Body:

Copper alloy - plated brass

Clamping and Coupling Nut:

Nickel - plated brass

Clamping Nut Waterproof:

Silicone O-ring

MECHANICAL & ENVIRONMENTAL
Interface Durability: 500 cycles
Temperature: Operating -40°C / +85°C
Installation -25°C / +55°C
Storage -50°C / +85°C
Waterproof Index: IP68
RoHS Compliance: Yes



ELECTRICAL
Impedance: 50 ± 1 Ω
Operating Frequency Band: DC ~ 3GHz
VSWR (0 ~ 3GHz):  ≤ 1.10

3rd Order Passive Intermodulation, Measured In Swept

Frequency Mode with 2  20W carriers, F ≤ 1880 MHz:

 ≤ -160 dBc
Voltage Test (at sea level): 3000 V eff / 50 Hz
Operating Voltage (at sea level): 1130 V eff / 50 Hz
Insulation Resistance: ≥ 10000 MΩ
Contact Resistance: Inner contact: ≤ 0.4 mΩ
Outer contact: ≤ 1.5 mΩ



Range

Compatibility with ACOME HPL 50 -3/8F

M2934,M2936

Test Methods: IEC 61169-4, IEC 62037-3, IEC 60529

Recommendations

INSTALLATION INSTRUCTION

ANM – C0053X
