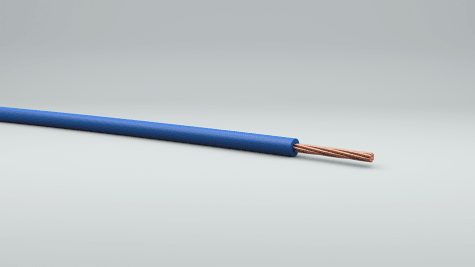

T105 wires PVC
Wires for passenger compartment applications.
0,35 - 7,00 mm²
0,35 - 7,00 mm²
Benefits
- Economical wire
- Lead-free PVC T2
General characteristics
Conductor
- Cu ETP1 according to DIN EN13602
Insulation
- Lead-free PVC class T105
| Conductor Wire | ||||||||
| Cross section | Number of strands | Max. diameter of strands | Max. diameter | Max. conductor resistance | Insulation wall thickness | Min. external diameter | Max. external diameter | Standard delivery length |
| mm² | mm | mm | Ω/km@ 20°C | mm | mm | mm | m | |
| Structure A (symmetrical) | ||||||||
| 0.35 | 7 | 0.25 | 0.75 | 5 | 0.22 | 1.25 | 1.40 | 15 000 |
| 0.50 | 7 | 0.30 | 0.90 | 37.1 | 0.28 | 1.40 | 1.70 | 11 000 |
| 0.75 | 19 | 0.23 | 1.15 | 24.7 | 0.30 | 1.70 | 1.90 | 8 500 |
| 1.00 | 19 | 0.25 | 1.25 | 19.5 | 0.30 | 2.00 | 2.15 | 7 000 |
| 1.50 | 19 | 0.32 | 1.60 | 12.7 | 0.30 | 2.10 | 2.40 | 5 500 |
| 2.00 | 37 | 0.25 | 1.75 | 10.0 | 0.35 | 2.50 | 2.80 | 3 500 |
| 2.50 | 37 | 0.30 | 2.10 | 7.6 | 0.35 | 2.65 | 3.00 | 3 500 |
| Structure B (asymmetrical) | ||||||||
| 3.00 | 45 | 0.30 | 2.35 | 6.1 | 0.40 | 3.25 | 3.45 | 2 300 |
| 4.00 | 56 | 0.30 | 2.55 | 5.0 | 0.40 | 3.70 | 3.90 | 1 800 |
| 5.00 | 70 | 0.30 | 2.85 | 4.0 | 0.40 | 3.80 | 4.00 | 1 400 |
| 6.00 | 84 | 0.30 | 3.20 | 3.2 | 0.40 | 4.20 | 4.50 | 1 000 |
| 7.00 | 105 | 0.30 | 3.40 | 2.8 | 0.45 | 4.70 | 5.00 | 1 000 |
Norms and standards
General standards
- According to ISO 6722-1
- PSA B251110-B
- RNDS-B-00005
