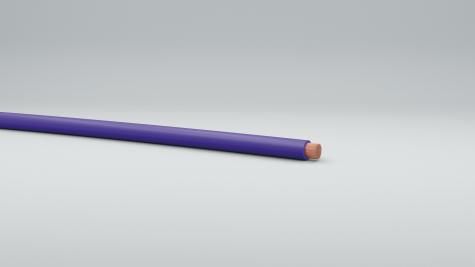

Low voltage power cable_Copper conductor_T150 Access -10 à 70 mm²

T150 Access - 10 à 70 mm²

XLPE single layer insulated power cables.
10 - 70 mm²

Benefits

  • PE e-beam crosslinked
  • Flexible cables
  • Thermomechanical behaviour (265°C during 1h)


General characteristics

Conductor

  • Cu ETP1 according to DIN EN13602

Insulation

  • Crosslinked PE class T150
  • PSA flexibility standard: class H or G
Conductor                                                              Câble
Cross section Number of strands Max. diameter of strands Max. diameter Max. conductor resistance Insulation wall thickness Min. external diameter Max. external diameter Standard delivery length
mm²   mm mm Ω/km@ 20°C mm mm mm m
Flexible  Cable ZH
10 144 0.31 3.90 1.91 0.48 5.30 6.00 1 300
16 126 0.41 5.00 1.21 0.52 6.40 7.00 1 000
20 150 0.41 5.42 0.99 0.52 7.00 7.50 750
25 192 0.41 6.12 0.78 0.52 7.90 8.70 650
High Flexible Cable  ZH
10 312 0.21 3.96 1.91 0.48 5.30 6.00 1 300
16 504 0.21 5.00 1.21 0.52 6.40 7.00 1 000
20 600 0.21 5.42 0.99 0.52 7.00 7.50 750
70 1064 0.31 11.40 0.259 0.70 13.00 15.50 180
High Flexible Cable  LH
25 784 0.21 6.40 0.78 0.52 7.90 8.30 650
50 1600 0.21 9.00 0.368 0.71 11.60 12.20 250

Norms and standards

General standards
  • ISO 6622-1
  • PSA B251110-B
