High voltage power cables_unshielded_HV T125 wires XLPE

HV T125 wires XLPE

Unshielded wires for high voltage power management application.
2.5-8.0 mm²

Benefits

  • Thermomechanical behaviour
  • Specific design to withstand high voltage Requirements
  • E-beam crosslinked PE halogen free


Applications

  • Unshielded high voltage wires for high voltage power management
  • Slow charge


General characteristics

Conductor

  • Cu ETP1 according to DIN EN13602

Insulation

  • Crosslinked low halogenated PE class T125
  • Compliant to HV Requirementss
  • Thin wall
Conductor                                                                              Wire
Cross section Number of strands Max. diameter of strands Max. diameter Max. conductor resistance Insulation wall thickness Min. external diameter Max. external diameter Standard delivery length
mm²   mm mm Ω/km@ 20°C mm mm mm m
Thin wall
2.50 37 0.30 2.10 7.60 0.28 2.70 3.00 3 500
4 56 0.305 2.60 4.71 0.32 3.40 3.70 2 000
3 45 0.30 2.35 6.15 0.32 3.00 3.20 3 000
5 75 0.30 2.85 3.94 0.32 3.70 3.90 1 900
6 84 0.305 3.20 3.14 0.32 4.00 4.30 1 400
8 98 0.32 3.50 2.38 0.35 4.60 5.00 1 000


Norms and standards

General standards
  • ISO 6722-1
  • GM GMW 15626
  • RNDS-B-00005

You want more information ?

Related products

High voltage power cables HV T150 shielded wires
HV T150 shielded wires
High voltage wires shielded with flexible sheath.
4-6.0 mm²

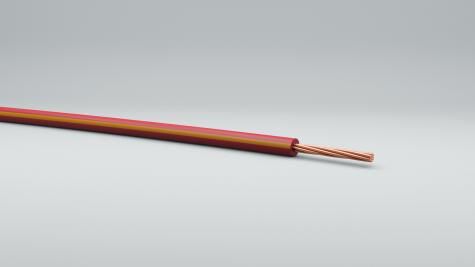

Engine cockpit harness wires T125 wires EV XLPE
