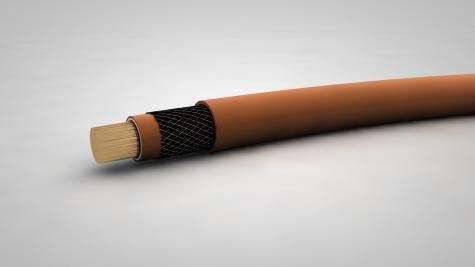

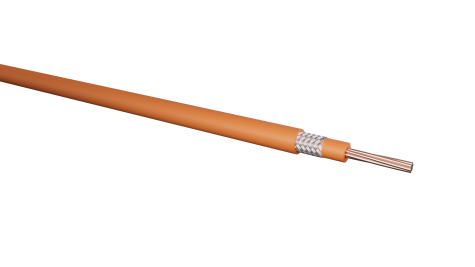

HV T150 shielded wires
High voltage wires shielded with flexible sheath.
4-6.0 mm²
4-6.0 mm²
Benefits
- Flexible insulation
- Specific design to withstand high voltage requirements
- Efficient shielding braids
Applications
- High-voltage shielded wires with flexible insulation for energy management
- Slow charge
- Optimized electromagnetic performance
General characteristics
Conductor
- Cu ETP1 according to DIN EN13602
Insulation
- Crosslinked low halogenated PE D ISO 6722 class T150
- Compliant to HV requirements
- Thin wall
| Conductor | Isolant | Shielding | Outer jacket | ||||||||
| Cross section | Construction | Max. diameter | Core diameter | Insulation Thickness | Overlap | Coverage | Strand diameter | External diameter | Insulation thickness | Standard delivery length | |
| mm² | mm | mm | mm | min % | min % | max mm | max mm | min mm | m | ||
| Blindage optimisé | |||||||||||
| 4 | 56x0.30 | 2.60 | 3.70 | 0.32 | 20 | 85 | 0.15 | 5.80 | 0.38 | 1 | 300 |
| 6 | 84x0.30 | 3.20 | 4.30 | 0.32 | 20 | 85 | 0.15 | 6.50 | 0.46 | 1 | 100 |
Norms and standards
General standards
- According to ISO 6722-1
- RNDS-B-00005
- Ford ES-AU5T-1A348-AA
- GMW 15626
