High voltage power cables_unshielded_HV 125 Ultra Flex

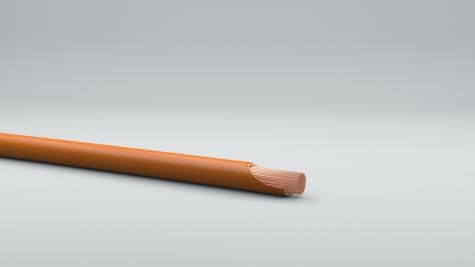

HV T125 Ultra Flex

High voltage cables with non shielded flexible triple layer insulation.
10 - 95 mm²

Benefits

  • Flexible conductor (strands 20/100)
  • Specific design to withstand high voltage Requirements
  • Higher flexibility: innovative triple layer insulation

Applications

  • Unshielded high voltage cables with triple layer insulation
  • Quick charge
  • Liaison with batteries and electric motors

General characteristics

Conductor

  • Cu ETP1 according to DIN EN13602

Insulation

  • Material: Cross-linked XLPO
  • Colour: Orange

Other

  •  Operating voltage: 600V AC / 900V DC – high voltage cables
  • Bending radius: 3D (static)

Thin wall definition

Cross
section
mm²

Strands
number

Strand
diameter
mm

Conductor
diameter
mm

Linear
resistance
max. Ω/km@ 20°C

Insulation
wall
thickness
(mm)

Min.
external diameter
mm

Max.
external diameter
mm

Standard
delivery length
(m in CXPA drums)

10

320

0.20

4.00

1.820

0.48

5.30

6.00

1 300

16

504

0.20

5.00

1.160

0.52

6.40

7.20

1 000

25

784

0.20

6.40

0.743

0.52

7.90

8.70

550

35

1 120

0.20

7.50

0.527

0.64

9.80

10.40

400

50

1 600

0.20

9.00

0.368

0.71

11.6

12.60

250

70

2 272

0.20

11.30

0.259

0.80

13.0

14.4

150

95

2 960

0.20

12.60

0.196

0.90

15.3

16.7

100

Additional CSA could be added if requested (202/302/402/602).

Thick wall definition

10

320

0.20

4.00

1.820

0.80

5.90

6.50

1 300

16

504

0.20

5.00

1.160

0.80

7.70

8.30

1 000

25

784

0.20

6.40

0.743

1.04

9.40

10

650

35

1 120

0.20

7.50

0.527

1.04

10.3

11

400

50

1 600

0.20

9.50

0.368

1.20

12.4

13.2

250

70

2 272

0.20

11.30

0.259

1.20

14.3

15.1

150

95

2 960

0.20

12.60

0.196

1.28

16.4

17.4

100

Norms and standards

General standards
  • According to  ISO 6722-1
  • Ford  ES-AU5T-1A348-AA
  • GMW 15626
  • RNDS-B-00005
