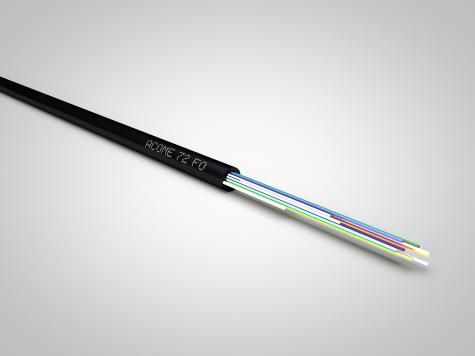

ACOPTIC - FTTH - PAD1504

Façade - Distribution cable with permanent accessibility

Benefits

  • Adaptability: Accessibility of the optical micro-module at any point on the cable
  • Easy installation: Easy extraction of optical micro-modules with two windows
  • Possibility of running the duct from the underground distribution point to the façade.
  • Quick installation: Access to micro-module fibres without special tools
  • Aesthetic: Discreet design compared to standard technologies (Façade-PACe solution)



Applications

  • The ACOME Façade-PACe PAD1504 range is particularly suitable for massive deployment of optical fibres on streets where several small buildings or houses are located next to each other.
  • These products have been designed for bypassing optical fibres at any point of the cable as part of a direct/buried/façade distribution network, from the distribution point to the subscribers' homes.
  • The cables can therefore be installed over short distances in ducts.
  • Micro-modules are extracted on the façade.
  • By combining this cable with the FaçadePACe box and the shutter clip, the installed solution provides a better visual aesthetic compared to a standard installation system
  • Micro-modules can be accessed on cables mid-span without disconnecting them with the IC5006 tool.



General characteristics

Coupe descriptif PAD1504



  1. Tearable micro-module: 1 or 6 fibres
  2. Strength members: FRP strength members
  3. Outer jacket: Polyethylene
  4. Waterproofing: Water-swelling elements
General
Item code Range Structure Modularity Fibre count Fibre type
N9896B PAD1504 0 M1 12 FO G657A2
N9836C PAD1504 0 M1 24 FO G657A2
N9895B PAD1504 0 M1 36 FO G657A2
N9835B PAD1504 0 M6 48 FO G657A2
N9955B PAD1504 0 M6 72 FO G657A2



Norms and standards

General standards
  • Cables and fibres in accordance with IEC/EN 60793 and IEC/EN 60794-1



Recommendations

Storage and installation
  • The cables are supplied with protective wrapping that must be maintained until the product has been fully used.
  • The rules for storage, transport, and cable laying are described in our ACOPTIC Guide.
