NMC3210 STANDARD ZH
ACOLAN OPTICAL

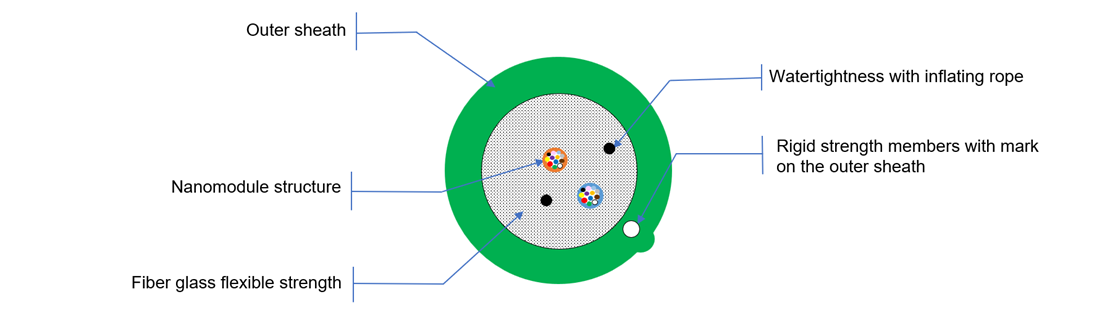

- Nanomodule structure, indoor/outdoor, watertight
- 4 to 48 FO (G657A1, OM3, OM4, OM5)
- Dielectric
- LSOH, Glass Yarn Reinforced
- B2ca-s1a,d1,a1
Benefits
- Quickly access to fibrers saved time during installation and connection
- Improved fire perfomance : B2ca-s1a,d1,a1
- Less carbon footprint
- ACOME Protection Index against rodents IPA: ✭✭✭✩✩
Applications
- High speed data transmission cables designed for local networks (LAN).
- Available for any type of environments : Office Buildings, Industrial, buildings open to the public and high-rise buildings.
General characteristics
GENERAL
|
Characteristics |
Value 4 to 48 | |
| Maximum pulling force (N) | 2000 | |
| Crush resistance (N/10cm) | 1000 | |
| Minimum bending radius (mm) | 10 x D | |
| Caractéristiques | Value 4 to 24 fibers | Value 48 fibers | ||
| Standard packaging (m) | 2100 | |||
| Nominal sheath thickness (mm) | 1,2 | 1,5 | ||
| Nominal diameter (mm) | 6,8 | 8,7 | ||
| Nominal weight (kg/km) | 46 | 72 | ||
| Temperature range |
Transport and storage | -40°C à +70°C | ||
| During installation | -5°C à +50°C | |||
| Operation | -20°C à +60°C | |||
Color code FOTAG (fiber & modules) :
| Blue | Orange | Green | Brown | Grey | White | Red | Black | Yellow | Purple | Pink | Turquoise |
Range
| Cable Content | Monomode 9/125 G657A1 | Multimode 50/125 OM3 | Multimode 50/125 OM4 | Multimode 50/125 OM5 |
| 4 fibers | B1401A | B1407A | B1413A | |
| 6 fibers | B1402A | B1408A | B1414A | B1490A |
| 8 fibers | B1403A | B1409A | B1415A | |
| 12 fibers | B1404A | B1410A | B1416A | B1491A |
| 24 fibers | B1405A | B1411A | B1417A | B1492A |
| 48 fibers | ||||
| B1495A | B1496A | B1497A |
Norms and standards
GENERAL
Cable and fibers : EN 60793-2 ; EN 60793-2-10 ; EN 60793-2-50 ; NF EN 60794-1-21 ; NF EN 60794-1-22
Wiring system : EN 50173-1 / ISO 11801
Applications : IEEE 802.3 10M to 10Gbit / IEEE 802.5 Token ring ANSI X3T9-5 (FDDI) ATM (155, 622, …)
FIRE BEHAVIOUR
|
Number of fibers |
Euroclass |
Declaration of performance |
Standards |
|
4 to 48 fibers |
B2ca-s1a,d1,a1 |
IEC 60332-1-1 (No flame propagation) NF EN 50399 (Heat and smoke released) IEC 60754-2 (Low gas corrosivity) IEC 61034-2 (Smoke opacity) |
