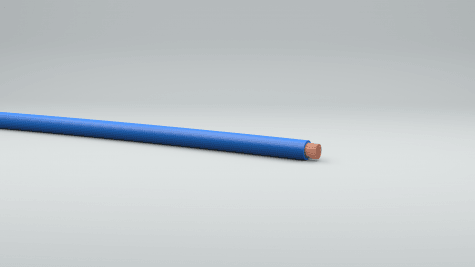

Product
Benefits
- Flexible PVC cables
- Good behaviour at low temperatures
General characteristics
Conductor
- Cu ETP1 according to DIN EN13602
Insulation
- Lead-free PVC RoHS class T105
|
Conductor Cable |
||||||||
|
Cross section |
Number of strands |
Diamètre max. des brins |
Diamètre max. |
Résistance linéique max. |
Épaisseur radiale min. |
Diamètre extérieur min. |
Diamètre extérieur max. |
Longueur de livraison standard |
|
mm² |
|
mm |
mm |
Ω/km@ 20°C |
mm |
mm |
mm |
m |
|
10 |
144 |
0.31 |
3.90 |
1.91 |
0.48 |
5.30 |
6.00 |
1 300 |
|
16 |
126 |
0.41 |
5.00 |
1.21 |
0.52 |
6.40 |
7.00 |
1 000 |
|
20 |
150 |
0.41 |
5.42 |
0.99 |
0.52 |
7.00 |
7.50 |
750 |
|
25 |
192 |
0.41 |
6.12 |
0.78 |
0.52 |
7.90 |
8.70 |
650 |
Norms and standards
General standards
- According to ISO 6722-1
- PSA B251110-B
Related products
Low voltage power cable
XLPE single layer insulated for environment up to 125 ° C
XLPE single layer insulated for environment up to 125 ° C

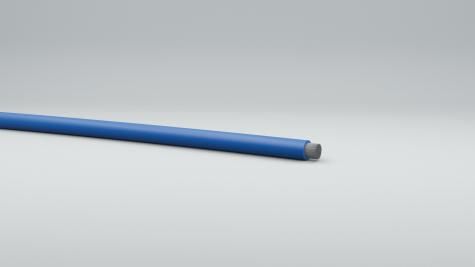

Power cables with aluminium conductor insulated with PVC.
