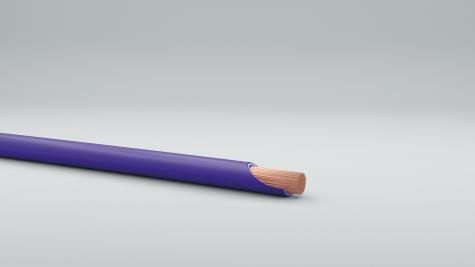

Câble de puissance basse tension_Conducteur cuivre_T150 Flex - 10 à 95 mm²

T150 Flex - 10 à 95 mm²

Flexible triple layer insulated power cables with thin strands.
10 - 95 mm²

Benefits

  • High Flexibility: excellent flexibility equivalent to the best references on the market
  • Price: compared to other material used massively for HV applications, thanks to XLPO material used in e-layer technologies, significant savings could be made on the cabling cost of the vehicle
  • Significant savings on the cost of vehicle wiring
  • Long life: the multi-resistance of the material (to abrasion, chemical aggression, tearability…) will allow the cable to remain safe and reliable during the full life of the vehicle

General characteristics

Conductor

  • Cu ETP1 according to DIN EN13602

Insulation

  • Crosslinked low halogenated PE/EBA/PE class T150 insulation thin and thick wall
Conductor                                                                          Cable
Cross section Number of strands Max. diameter of strands Max. diameter Max. conductor resistance Insulation wall thickness Min. external diameter Max. external diameter Standard delivery length
mm²   mm mm Ω/km@ 20°C mm mm mm m
Thin Wall
10 320 0.20 4.00 1.82 0.48 5.40 5.80 1 300
12 384 0.20 4.50 1.52 0.48 6.00 6.40 1 100
16 504 0.20 5.00 1.16 0.52 6.50 7.00 1 000
20 600 0.20 5.45 0.955 0.52 7.00 7.50 750
25 784 0.20 6.40 0.743 0.52 7.50 7.50 550
30 896 0.20 7.00 0.647 0.52 8.30 8.70 550
35 1120 0.20 7.50 0.527 0.64 9.00 9.60 450
50 1600 0.20 9.00 0.368 0.71 11.60 12.2 250
50 1600 0.20 9.00 0.368 0.72 11.80 12.20 250
60 1840 0.20 10.00 0.315 0.71 11.60 12.20 250
70 2272 0.20 11.30 0.259 0.80 12.00 13.30 200
Thick Wall
30 896 0.20 7.00 0.647 1.04 9.70 10.90 400
35 1120 0.20 7.80 0.527 1.04 9.60 11.60 300
40 1216 0.20 8.20 0.473 1.12 11.20 12.40 300
50 1600 0.20 9.00 0.368 1.20 11.50 13.50 200
95 2960 0.20 12.60 0.196 1.28 16.20 17.20 100


Norms and standards

General standards
  • ISO 6722-1
  • LV112-1
  • Ford ES-AU5T-1A348-AA
  • GMW 15626
  • PSA B251110-B
  • RNDS-B-00005
