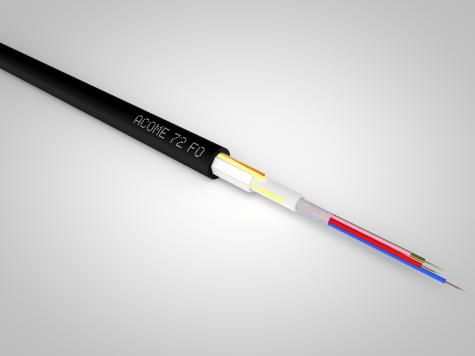

ACOPTIC - CCC1577

ADSS overhead cables up to 200m*

Benefits

  • Dielectric (no earthing required) and dry waterproof
  • Simple overhead installation: ADSS cable
  • Multi-use possibilities: duct and direct-buried installation with enhanced rodent resistance
  • Compact Tube® technology for fast and easy installation and mid-span access
  • Easy end terminations with no risk of tube kinking


Applications

  • ACOPTIC® brings together ACOME’s optical cables solutions for Telecom networks.
  • CCC1577 cables are designed to enable long reach ADSS overhead applications (up to 200m).
  • CCC1577 therefore offers excellent resistance to weather disturbances (wind, ice weight, etc.). Spans will vary depending on weather conditions at the installation site (refer to charts below).
  • Generally used for overhead POP interconnection or in the transport part of the FTTH access network.


General characteristics

coupe descriptif CCC1577



  1. Compact Tube®: Modules of x fibres under tearable thermoplastic sheathing
  2. Dry waterproofing: Water-swelling tape
  3. Central unit: Thermoplastic tube
  4. Armour: Flat FRP
  5. Outer jacket: Black high density polyethylene



General
Item code Range Structure Modularity Fibre count Fibre type Marking Colour code
N5570B CCC1577 Z1179 M12 12 FO G652D ACOME Std
N5571B CCC1577 Z1179 M12 24 FO G652D ACOME Std
N5572B CCC1577 Z1179 M12 36 FO G652D ACOME Std
N5573B CCC1577 Z1180 M12 48 FO G652D ACOME Std
N5574B CCC1577 Z1180 M12 60 FO G652D ACOME Std
N5575B CCC1577 Z1180 M12 72 FO G652D ACOME Std
N8637B CCC1577 Z1259 M12 96 FO G652D ACOME Std
N8390B CCC1577 Z1259 M12 144 FO G652D ACOME Std



Color code

Code couleurs CCC1577



Norms and standards

General standards
  • Cables and fibres in accordance with IEC/EN 60793 and IEC/EN 60794-1



Recommendations

Storage and installation
  • The cables are supplied with protective wrapping that must be maintained until the product has been fully used.
  • The rules for storage, transport, and cable laying are described in our ACOPTIC Guide.
