Réseaux télécoms optique et FTTH_UNC1566

ACOPTIC - UNC1566

Dielectric cables for blowing or pulling through ducts

Benefits

  • Entirely dielectric cable (earthing not required)
  • Especially lightweight (a Tmax/weight factor much greater than 2), they can be deployed over very long distances.
  • Versatile, they are suited to all installation techniques: pulling, blowing and floating.
  • Quick and easy, this cable features Compact Tube® technology, which enables access to fibres without any special tools and avoids the risks of straw effect.



Applications

  • ACOPTIC® brings together ACOME’s optical cables solutions for Telecom networks.
  • The UNC1566 range is particularly adapted to long-distance (WAN) and metropolitan area network (MAN) applications, such as ODF and centre interconnections or uses within transportation networks.
  • This compact and robust solution can be installed in conduits and ducts over very long distances using any laying technique.



General characteristics

coupe descriptif UNC1566



  1. Compact Tube: 2 to 12 optical fibres under tearable thermoplastic sheathing
  2. Rigid strength members: 2 FRP strength members
  3. Flexible strength members: Glass yarns with water-swelling elements (dry waterproofing)
  4. Outer jacket: Black high-density polyethylene



General
Item code Range Structure Modularity Fibre count Fibre type Marking Colour code
N9384C UNC1566 Z1175 M12 12 FO G652D ACOME Std
N6819C UNC1566 Z1175 M12 24 FO G652D ACOME Std
N6820C UNC1566 Z1175 M12 36 FO G652D ACOME Std
N7531A UNC1566 Z1176 M12 48 FO G652D ACOME Std
N7126C UNC1566 Z1176 M12 72 FO G652D ACOME Std
N7971A UNC1566 Z1177 M12 96 FO G652D ACOME Std
N7173C UNC1566 Z1177 M12 144 FO G652D ACOME Std



  • ACOME offers on request a long-term anti-rodent and / or anti-termite protection solution ACOREX®.



Color code

code couleur UNC1566



Norms and standards

General standards
  • Cables and fibres in accordance with IEC/EN 60793 and IEC/EN 60794-1



Recommendations

Storage and installation
  • The cables are supplied with protective wrapping that must be maintained until the product has been fully used.
  • The rules for storage, transport, and cable laying are described in our ACOPTIC Guide.



DOCUMENTATION

You want more information ?

Related products

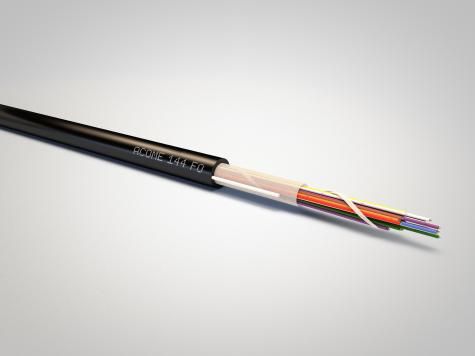

Réseaux télécoms optique et FTTH_UND1533
ACOPTIC - FTTH - UND1533
Distribution cables for blowing or pulling through ducts

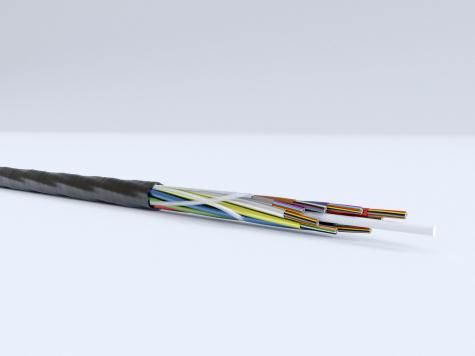

Réseaux télécoms optique et FTTH_MCD1521
