Réseaux télécoms optiques et FTTH_UNX1835

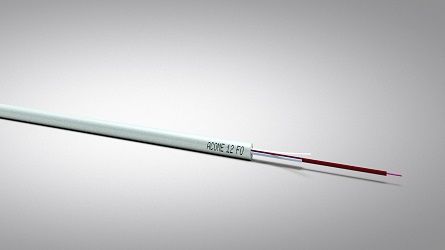

ACOPTIC - UNX1835

Optical cross-connect cable - LSOH

Benefits

  • Compact,
    • Very high tensile strength,
    • Very high resistance to crushing,
    • Very high heat resistance,
    • Very high resistance to UV rays.
  • Its multi-use, fireproof LSOH sheath makes it suitable for outdoor installation (waterproof, UV resistant).



Applications

  • The ACOME UNX1835 jumper has been designed to meet the wiring needs of telephone exchanges and data centres.
  • Designed for indoor usage with installation by pulling. It is adapted to installation in centres where the thermal and mechanical conditions are sometimes challenging.


General characteristics

Coupe descriptif UNX1835



  1. Compact Tube: 12 optical fibres under tearable thermoplastic sheathing
  2. Rigid strength members: 2 FRP strength members
  3. Waterproofing: Dry waterproofing via water-swelling elements
  4. Outer jacket: UV stabilised Low Smoke Zero Halogen (LSOH)
Color code

code couleurs UNX1835



Norms and standards

General standards
  • Cables and fibres in accordance with IEC/EN 60793 and IEC/EN 60794-1



Recommendations

Implementation
  • Sheet APC111



Storage and installation
  • The cables are supplied with protective wrapping that must be maintained until the product has been fully used.
  • The rules for storage, transport, and cable laying are described in our ACOPTIC Guide.
